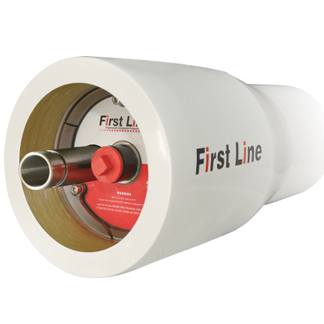

Standard Pressure vessels

1000psi

Models F80-1000E

End Entry Design
Available in 1000 psi pressure rating
Accommodates standard make 8" Membrane Element

Key Features

Operating Temp Range: -10°C ---49°C
Test pressure

Standard: 1.5x Design Pressure
ASME: 1.1x Design Pressure

Internal permeate port not to exceed 125PSI(0.88MPa)
Operating pH Range: 3 – 11
Cleaning pH Range: 2 – 12 (less than 30 minutes)
Please operate in accordance with User Guide

All information is subject to change without prior notice. Please contact usfor the latest product information and specifications.

Download Products Information

Data Sheet

Drawings

User Guide

Spare Parts List

Adapter List

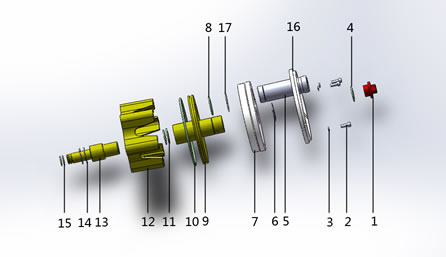

Please click serial number to view detail information

1

Part NamePlug
Part NumberF80H-14-01
2

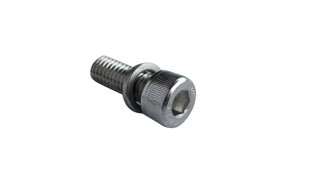

Part NameLocking Segment Screw
Part NumberF80H-81-01
3

Part NameSpring Pad
Part NumberF80H-02-01
4

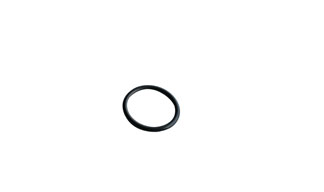

Part NameO-Ring
Part NumberF80H-52-01
5

Part NameFeed/Conc Port
Part NumberF80H-23-01
6

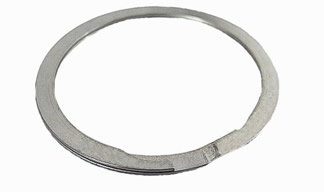

Part NameRetaining-Ring
Part NumberF80H-92-01
7

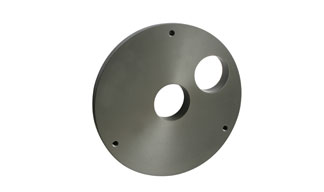

Part NameBearing Plate
Part NumberF80H-09-01
8

Part NameO-Ring
Part NumberF80H-57-01
9

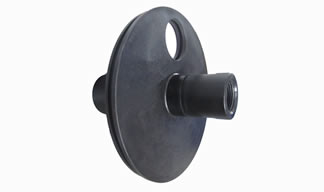

Part NameSealing Plate
Part NumberF80H-10-02
10

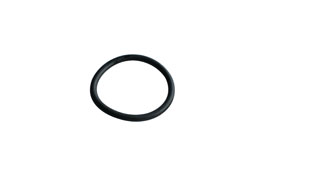

Part NameO-Ring
Part NumberF80H-51-01
11

Part NameO-Ring
Part NumberF80H-52-01
12

Part NameThrust Ring
Part NumberF80H-08-01
13

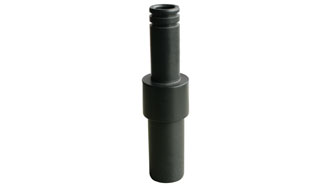

Part NameAdapter
Part NumberF80H-11-01
14

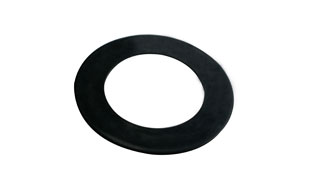

Part NameAdapter Pad
Part NumberF80H-15-01
15

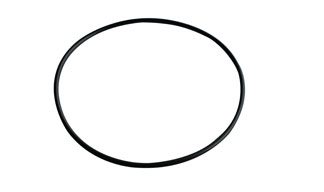

Part NameO-Ring
Part NumberF80H-53-01
16

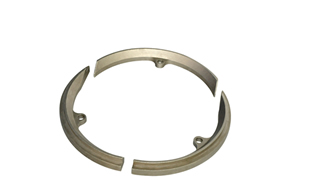

Part NameLocking Kit Segment
Part NumberF80H-03-01
17

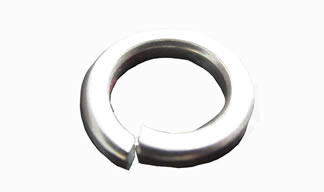

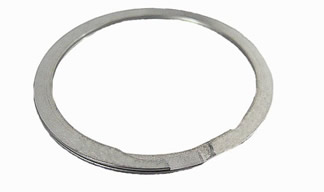

Part NameRetaining Ring
Part NumberF80H-92-01
