Standard Pressure vessels

450psi

Models F40-450S

Side Entry Design

Available in 450 psi pressure rating

Accommodates standard make 4" Membrane Element

Key Features

Operating Temp Range: -10°C ---49°C
Test pressure

Standard: 1.5x Design Pressure
ASME: 1.1x Design Pressure

Internal permeate port not to exceed 125PSI(0.88MPa)
Operating pH Range: 3 – 11
Cleaning pH Range: 2 – 12 (less than 30 minutes)
Please operate in accordance with User Guide

All information is subject to change without prior notice. Please contact usfor the latest product information and specifications.

Download Products Information

Data Sheet

Drawings

User Guide

Spare Parts List

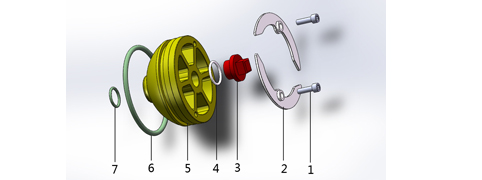

Please click serial number to view detail information

1

Part NameLocking Crescent Screw
Part NumberF40L-88-01
2

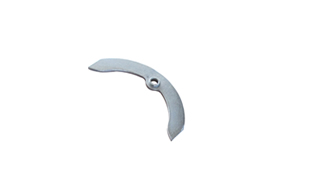

Part NameLocking Crescent
Part NumberF40L-94-01
3

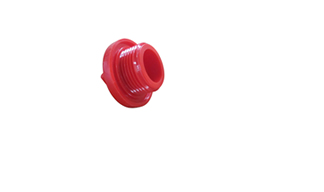

Part NamePlug
Part NumberF40L-04-01
4

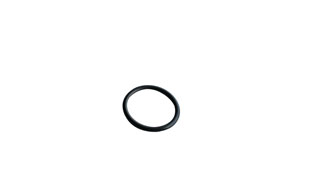

Part NameO-Ring
Part NumberF40L-53-01
5

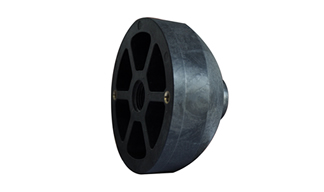

Part NameEnd Plate
Part NumberF40L-12-01
6

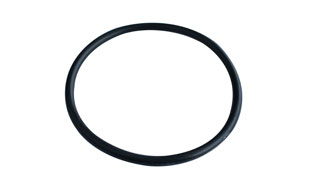

Part NameO-Ring
Part NumberF40L-58-01
7

Part NameO-Ring
Part NumberF40L-59-01
