Standard Pressure vessels

450psi

Models F80-450S

Side Entry Design
  • Available in 450 psi pressure rating
  • Accommodates standard make 8" Membrane Element

  • Key Features

    • Operating Temp Range: -10°C ---49°C
    • Test pressure
      • Standard: 1.5x Design Pressure
      • ASME: 1.1x Design Pressure
    • Internal permeate port not to exceed 125PSI(0.88MPa)
    • Operating pH Range: 3 – 11
    • Cleaning pH Range: 2 – 12 (less than 30 minutes)
    • Please operate in accordance with User Guide

    All information is subject to change without prior notice. Please contact usfor the latest product information and specifications.

    Download Products Information

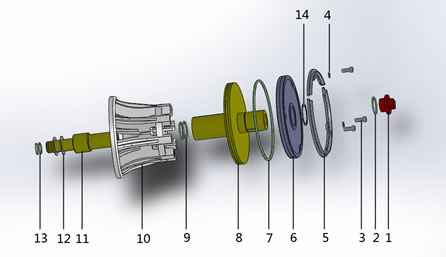

    Please click serial number to view detail information
    • 1

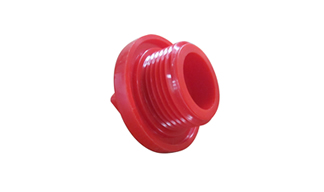

      Part NamePlug
      Part NumberF80L-14-01

    • 2

      Part NameO-Ring
      Part NumberF80L-52-01

    • 3

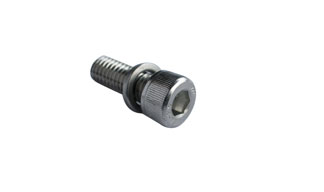

      Part NameLocking Segment Screw
      Part NumberF80L-81-01

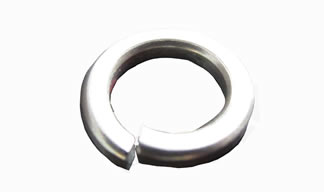

    • 4

      Part NameSpring Pad
      Part NumberF80L-02-01

    • 5

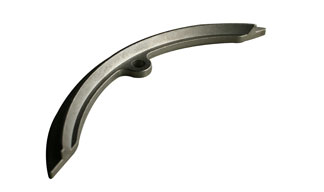

      Part NameLocking Kit Segment
      Part NumberF80L-03-01

    • 6

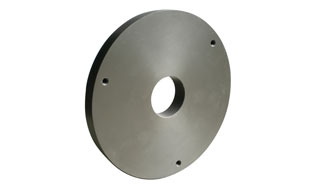

      Part NameBearing Plate
      Part NumberF80L-31-01

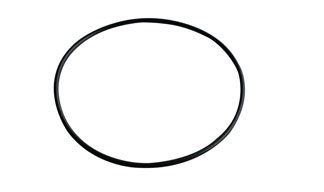

    • 7

      Part NameO-Ring
      Part NumberF80L-51-01

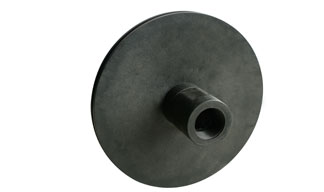

    • 8

      Part NameSealing Plate
      Part NumberF80L-10-02

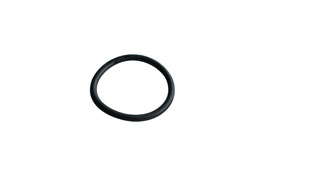

    • 9

      Part NameO-Ring
      Part NumberF80L-52-01

    • 10

      Part NameThrust Ring
      Part NumberF80L-08-02

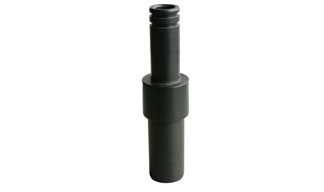

    • 11

      Part NameAdapter
      Part NumberF80L-11-01

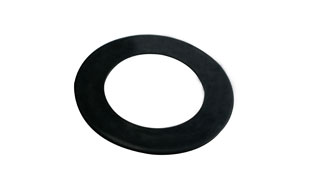

    • 12

      Part NameAdapter Pad
      Part NumberF80L-15-01

    • 13

      Part NameO-Ring
      Part NumberF80L-53-01

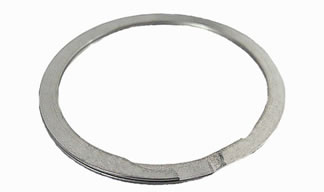

    • 14

      Part NameRetaining Ring
      Part NumberF80L-92-01
