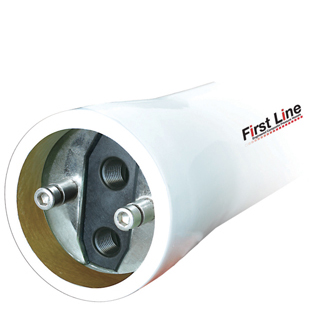

Standard Pressure vessels

300psi

Models F25-300E

  • End Entry Design
  • Available in 300 psi pressure rating
  • Accommodates standard make 2.5" Membrane Element

Key Features

  • Operating Temp Range: -10°C ---49°C
  • Test pressure
    • Standard: 1.5x Design Pressure
    • ASME: 1.1x Design Pressure
  • Internal permeate port not to exceed 125PSI(0.88MPa)
  • Operating pH Range: 3 – 11
  • Cleaning pH Range: 2 – 12 (less than 30 minutes)
  • Please operate in accordance with User Guide

All information is subject to change without prior notice. Please contact usfor the latest product information and specifications.

Download Products Information

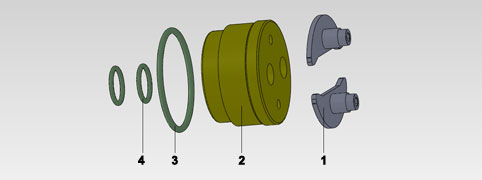

Please click serial number to view detail information
  • 1

    Part NameLocking Crescent
    Part NumberF25L-04-01

  • 2

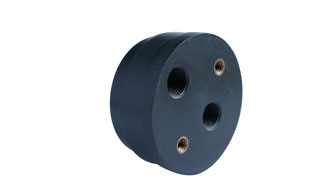

    Part NameEnd Plate
    Part NumberF25L-01-01

  • 3

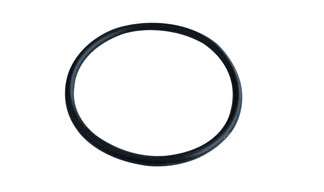

    Part NameO-Ring
    Part NumberF25L-70-01

  • 4

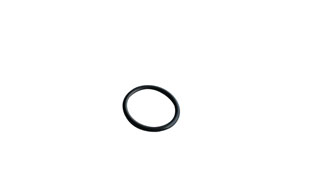

    Part NameO-Ring
    Part NumberF25L-59-01
