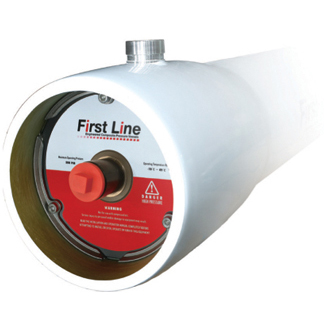

Standard Pressure vessels

300psi

Models F80-300S

Side Entry Design
Available in 300 psi pressure rating
Accommodates standard make 8" Membrane Element

Key Features

Operating Temp Range: -10°C ---49°C
Test pressure

Standard: 1.5x Design Pressure
ASME: 1.1x Design Pressure

Internal permeate port not to exceed 125PSI(0.88MPa)
Operating pH Range: 3 – 11
Cleaning pH Range: 2 – 12 (less than 30 minutes)
Please operate in accordance with User Guide

All information is subject to change without prior notice. Please contact usfor the latest product information and specifications.

Download Products Information

Data Sheet

Drawings

User Guide

Spare Parts List

Adapter List

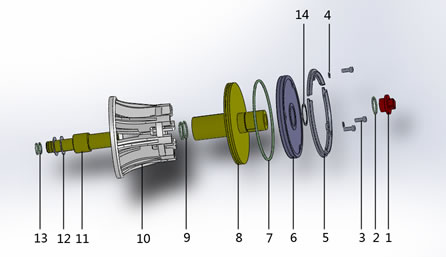

Please click serial number to view detail information

1

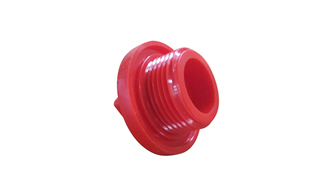

Part NamePlug
Part NumberF80L-14-01
2

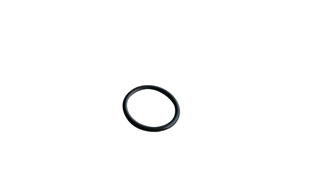

Part NameO-Ring
Part NumberF80L-52-01
3

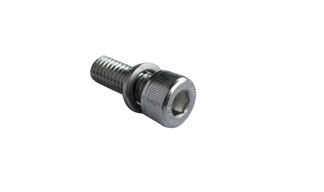

Part NameLocking Segment Screw
Part NumberF80L-81-01
4

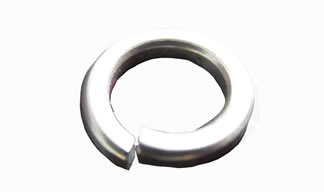

Part NameSpring Pad
Part NumberF80L-02-01
5

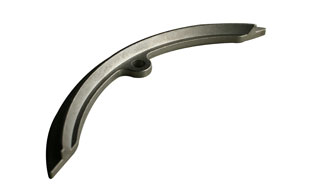

Part NameLocking Kit Segment
Part NumberF80L-03-01
6

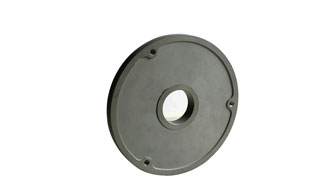

Part NameBearing Plate
Part NumberF80L-09-01
7

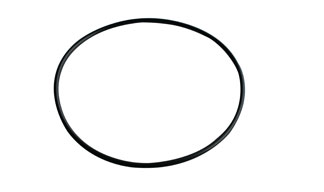

Part NameO-Ring
Part NumberF80L-51-01
8

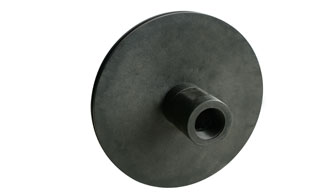

Part NameSealing Plate
Part NumberF80L-10-01
9

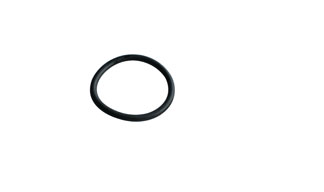

Part NameO-Ring
Part NumberF80L-52-01
10

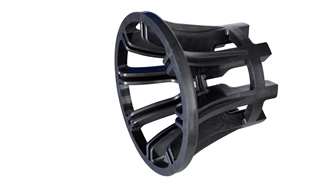

Part NameThrust Ring
Part NumberF80L-08-02
11

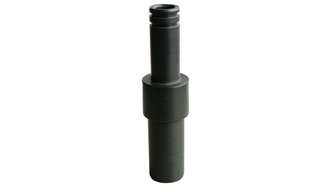

Part NameAdapter
Part NumberF80L-11-01
12

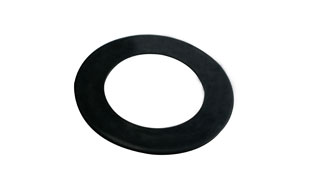

Part NameAdapter Pad
Part NumberF80L-15-01
13

Part NameO-Ring
Part NumberF80L-53-01
14

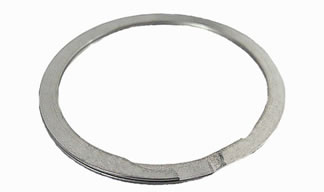

Part NameRetaining Ring
Part NumberF80L-92-01
