Standard Pressure vessels

1200psi

Models F40-1200S

Side Entry Design

Available in 1200 psi pressure rating

Accommodates standard make 4" Membrane Element

Key Features

Operating Temp Range: -10°C ---49°C
Test pressure

Standard: 1.5x Design Pressure
ASME: 1.1x Design Pressure

Internal permeate port not to exceed 125PSI(0.88MPa)
Operating pH Range: 3 – 11
Cleaning pH Range: 2 – 12 (less than 30 minutes)
Please operate in accordance with User Guide

All information is subject to change without prior notice. Please contact usfor the latest product information and specifications.

Download Products Information

Data Sheet

Drawings

User Guide

Spare Parts List

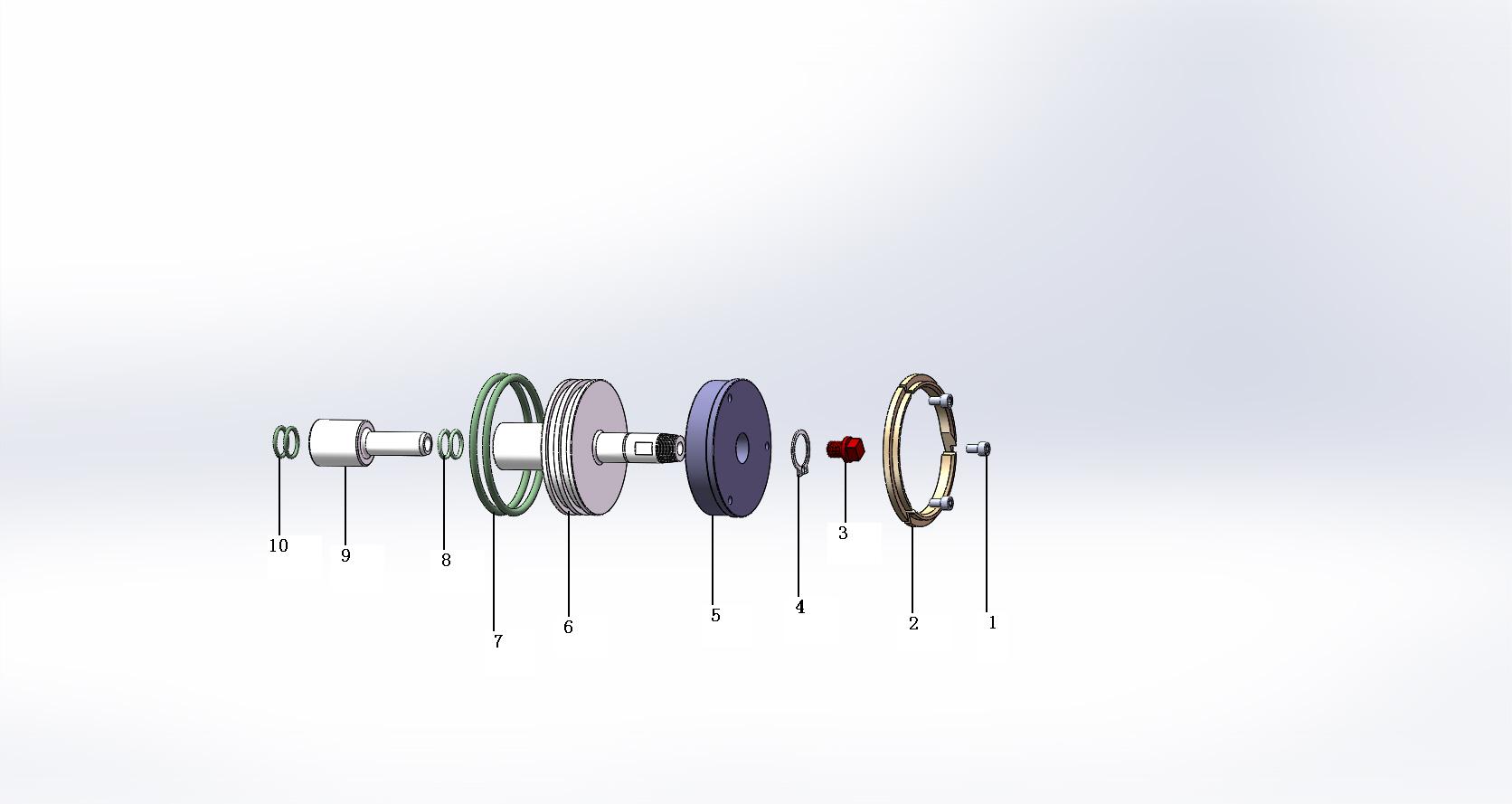

Please click serial number to view detail information

1

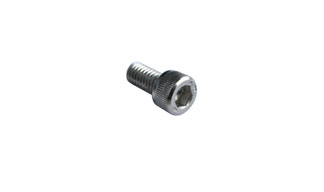

Part NameSecuring Screw
Part NumberF40H-84-01
2

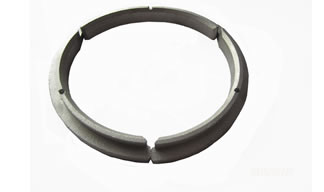

Part NameLocking Kit Segment
Part NumberF40H-95-01
3

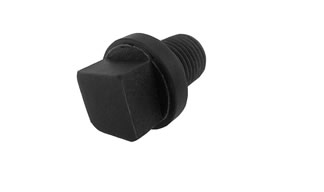

Part NamePlug
Part NumberF40H-10-01
4

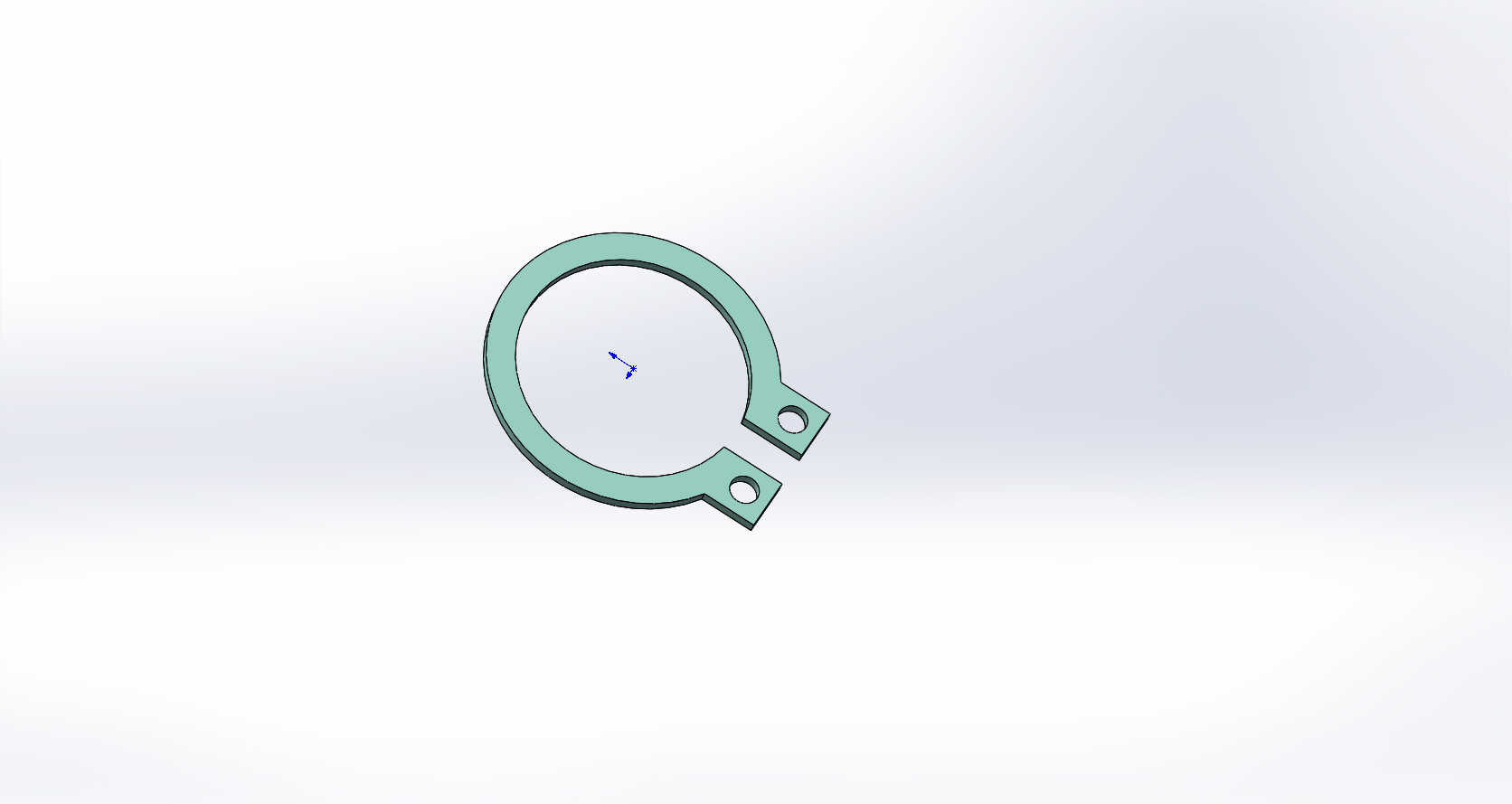

Part NameRetaing Ring
Part NumberF40H-101-01
5

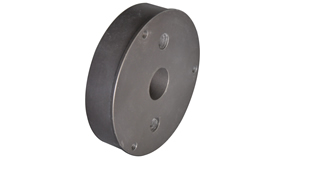

Part NameBearing Plate
Part NumberF40H-22-01
6

Part NameSealing Plate
Part NumberF40H-21-01
7

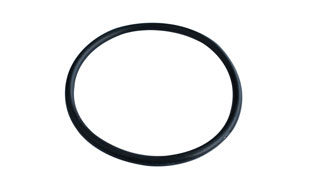

Part NameO-Ring
Part NumberF40H-58-01
8

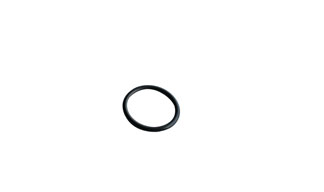

Part NameO-Ring
Part NumberF40H-71-01
9

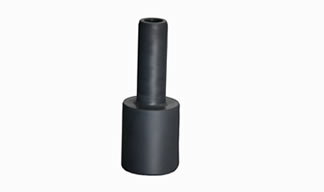

Part NameAdapter
Part NumberF40H-26-01
10

Part NameO-Ring
Part NumberF40H-59-01
