Standard Pressure vessels

1000psi

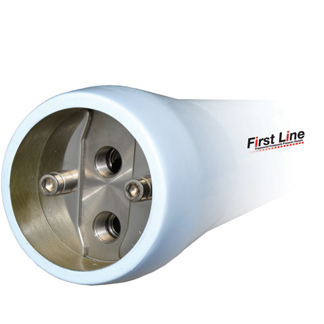

Models F25-1000E

End Entry Design
Available in 1000 psi pressure rating
Accommodates standard make 2.5" Membrane Element

Key Features

Operating Temp Range: -10°C ---49°C
Test pressure

Standard: 1.5x Design Pressure
ASME: 1.1x Design Pressure

Internal permeate port not to exceed 125PSI(0.88MPa)
Operating pH Range: 3 – 11
Cleaning pH Range: 2 – 12 (less than 30 minutes)
Please operate in accordance with User Guide

All information is subject to change without prior notice. Please contact usfor the latest product information and specifications.

Download Products Information

Data Sheet

Drawings

User Guide

Spare Parts List

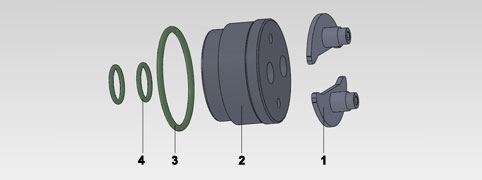

Please click serial number to view detail information

1

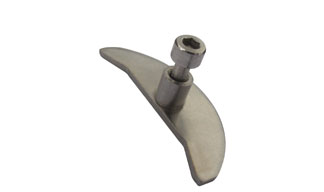

Part NameLocking Crescent
Part NumberF25H-04-01
2

Part NameEnd Plate
Part NumberF25H-05-01
3

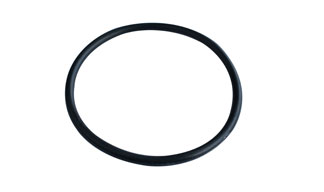

Part NameO-Ring
Part NumberF25H-70-01
4

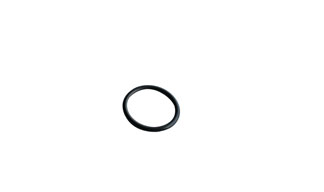

Part NameO-Ring
Part NumberF25H-59-01
