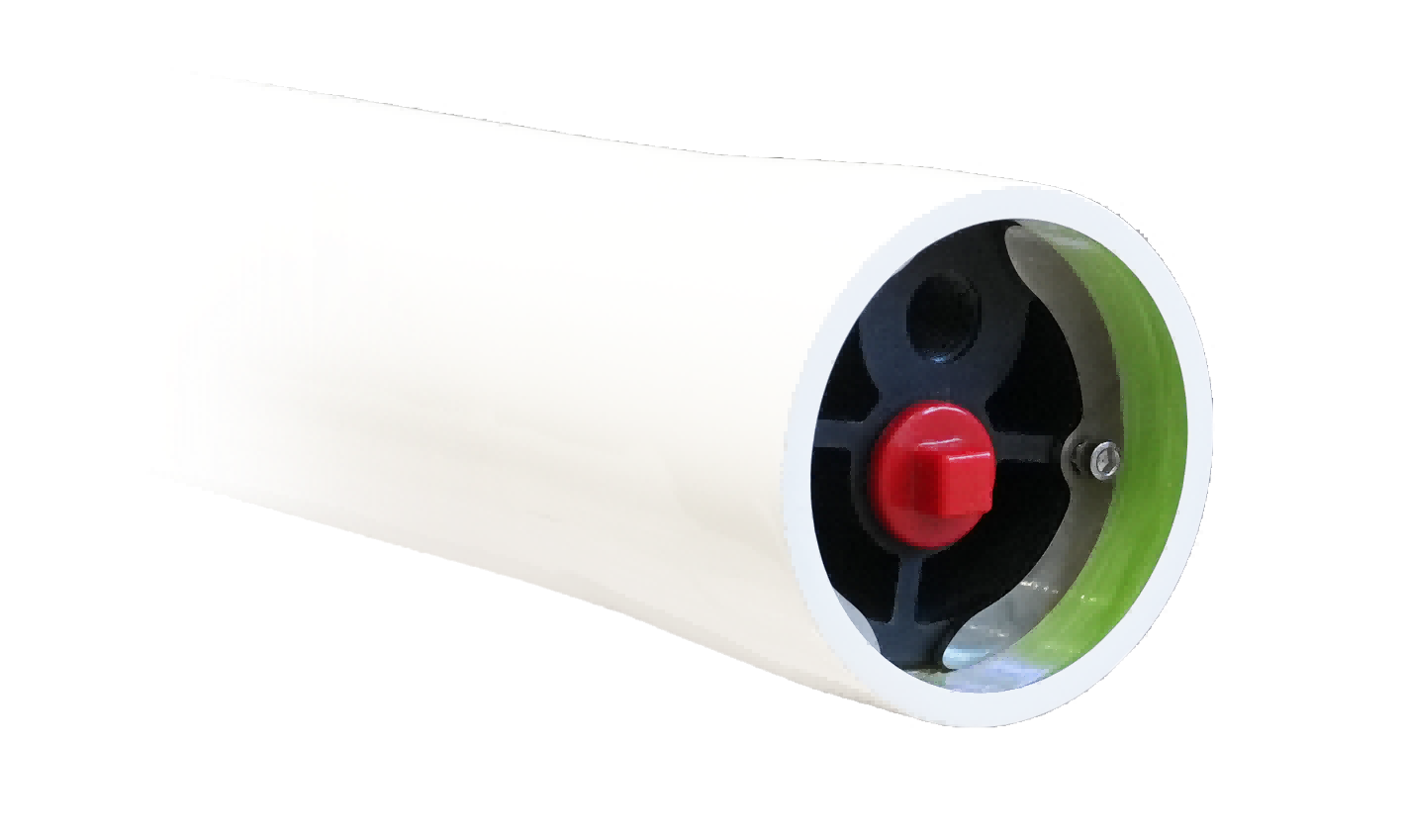

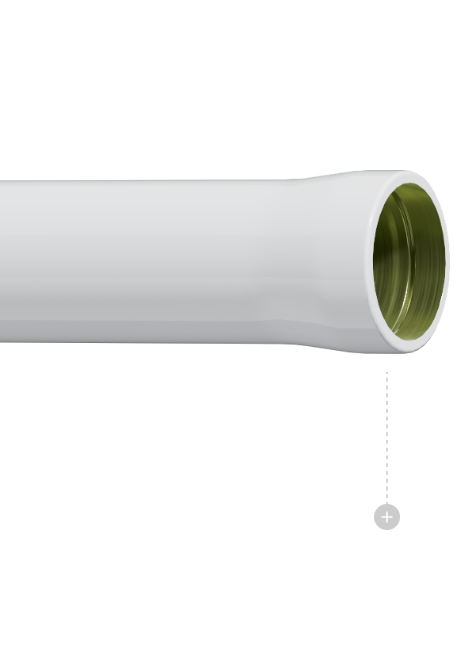

Models F40-300E

Contact Us

End Entry Design
- Available in 300 psi pressure rating
- Accommodates standard make 4" Membrane Element
Key Features
- Operating Temp Range: -10°C ---49°C
- Test pressure
  - Standard: 1.5x Design Pressure
  - ASME: 1.1x Design Pressure
- Internal permeate port not to exceed 125PSI(0.88MPa)
- Operating pH Range: 3 – 11
- Cleaning pH Range: 2 – 12 (less than 30 minutes)
- Please operate in accordance with User Guide

All information is subject to change without prior notice. Please contact us for the latest product information and specifications.

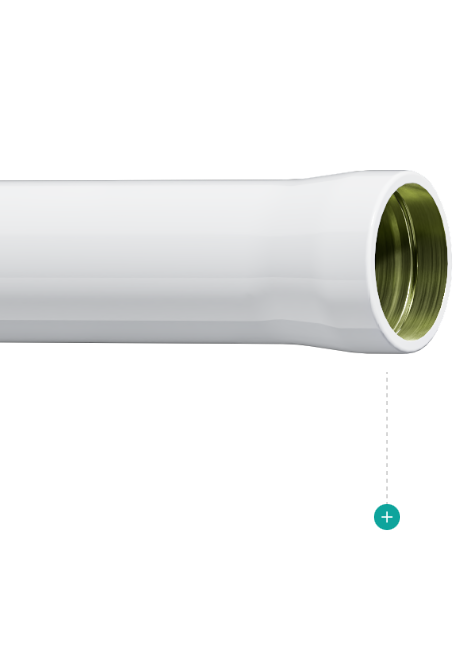

3D View of End Cap Assembly

整体端板

整体端板

密封圈

密封圈

大密封圈

大密封圈

密封板

密封板

密封圈

密封圈

* Please click on the product component to view relevant information

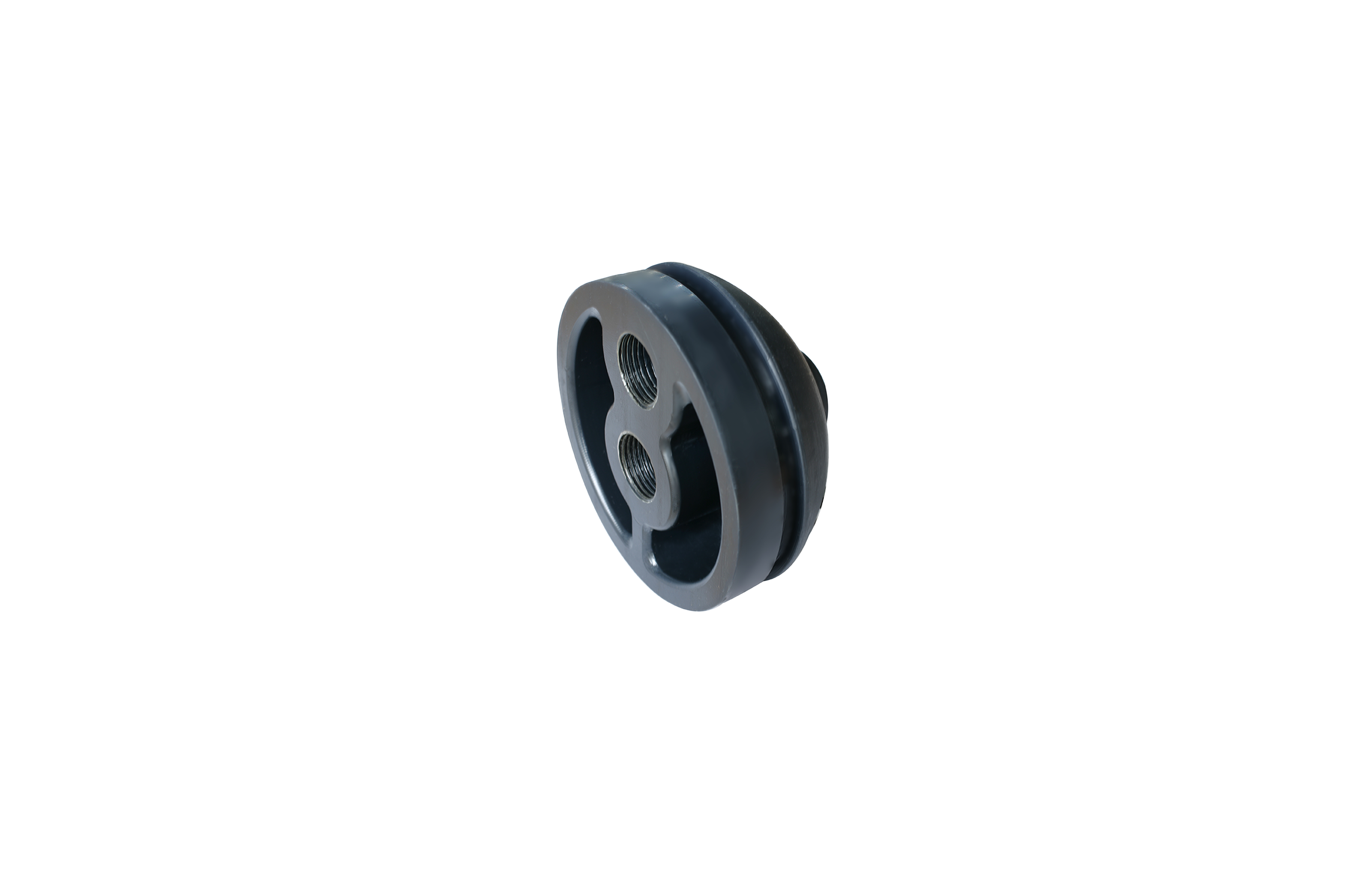

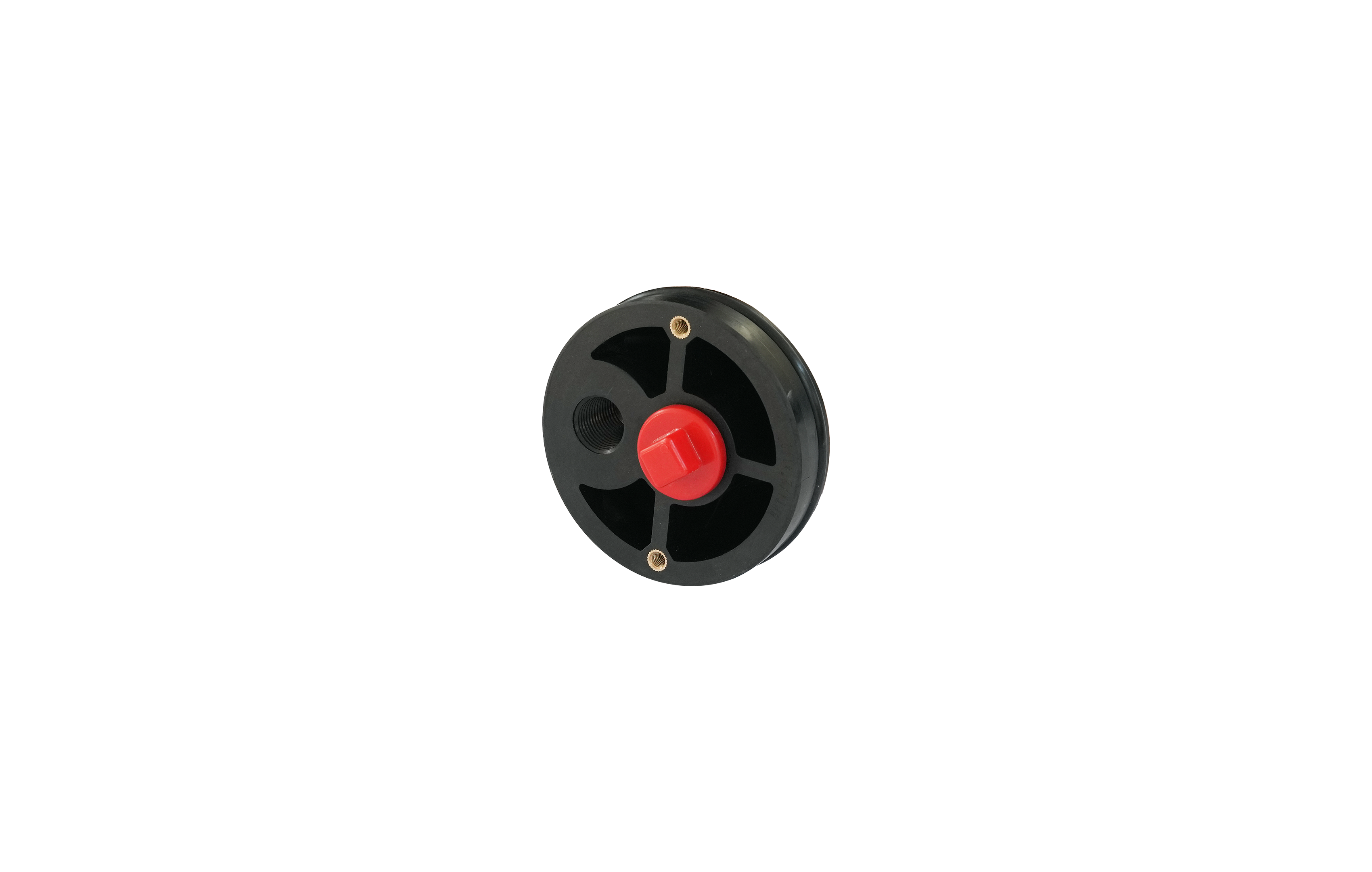

Part Name：End Cap

Part Number：F40-300E

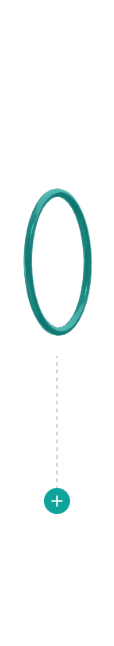

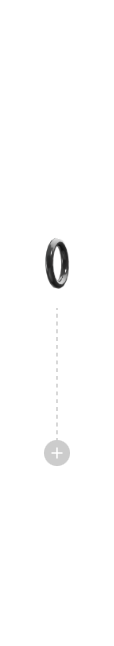

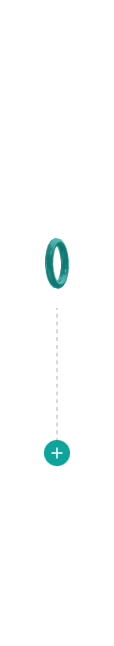

Part Name：O-ring , PWT

Part Number：20002478

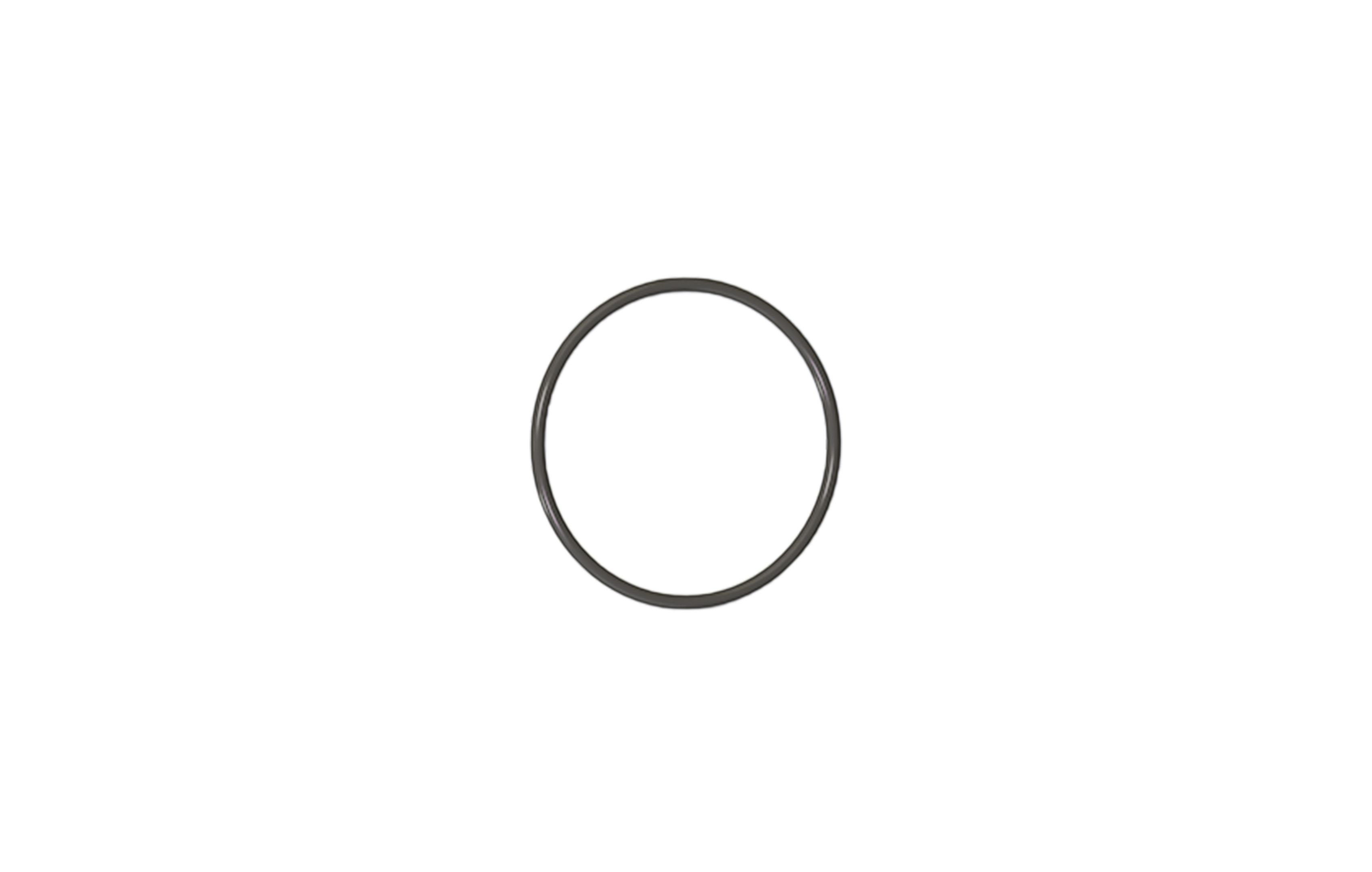

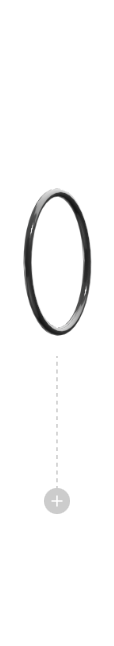

Part Name：O-ring , Head

Part Number：20000319

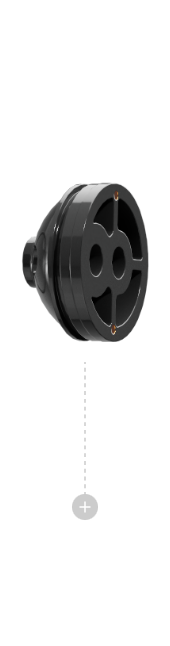

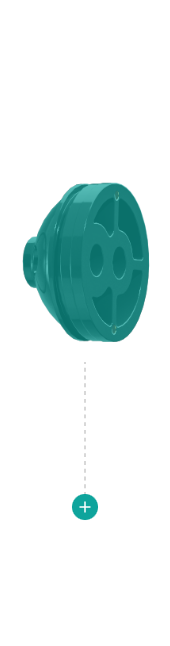

Part Name：End Plate

Part Number：20000025

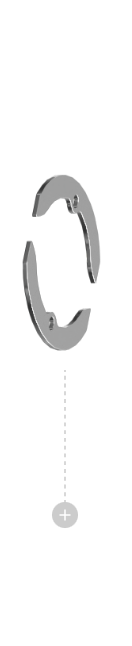

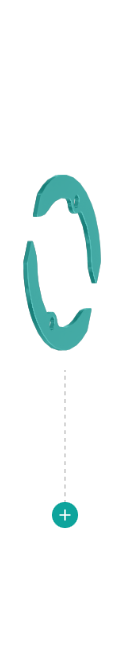

Part Name：Locking Crescent

Part Number：20001081

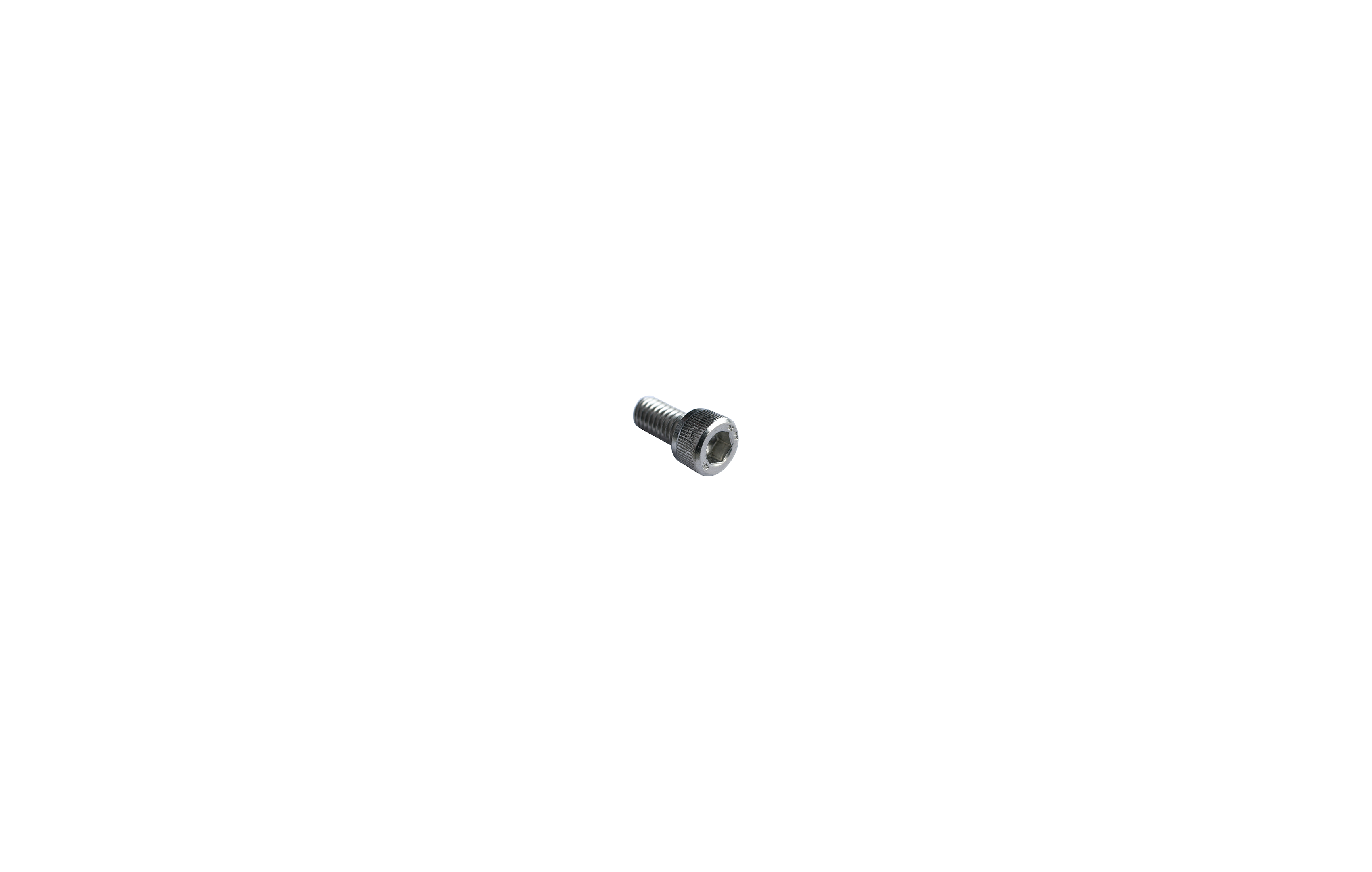

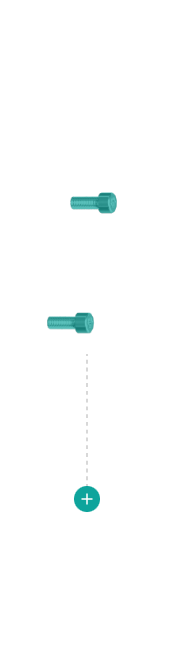

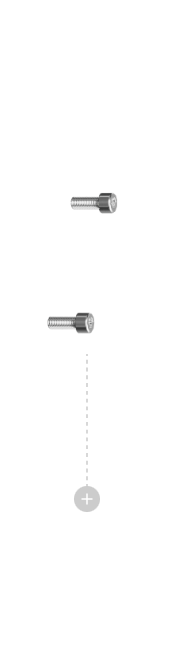

Part Name：Locking Crescent Screw

Part Number：20000205

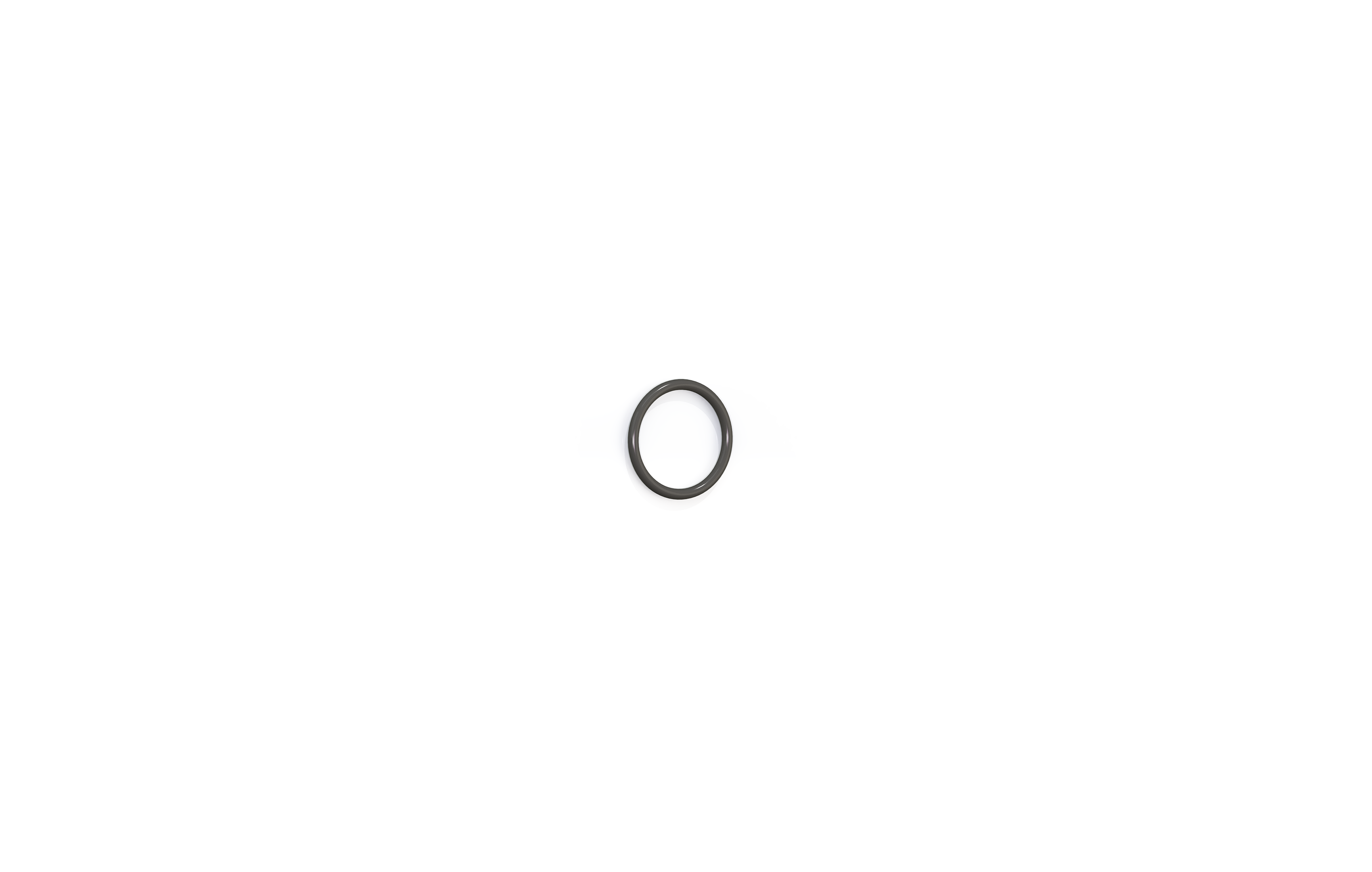

Part Name：O-ring , Plug

Part Number：20002813

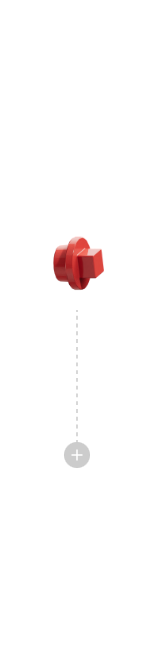

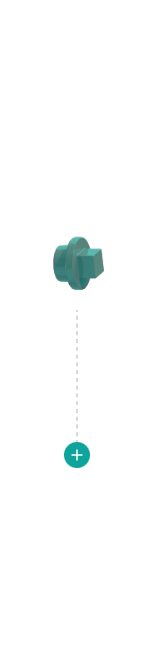

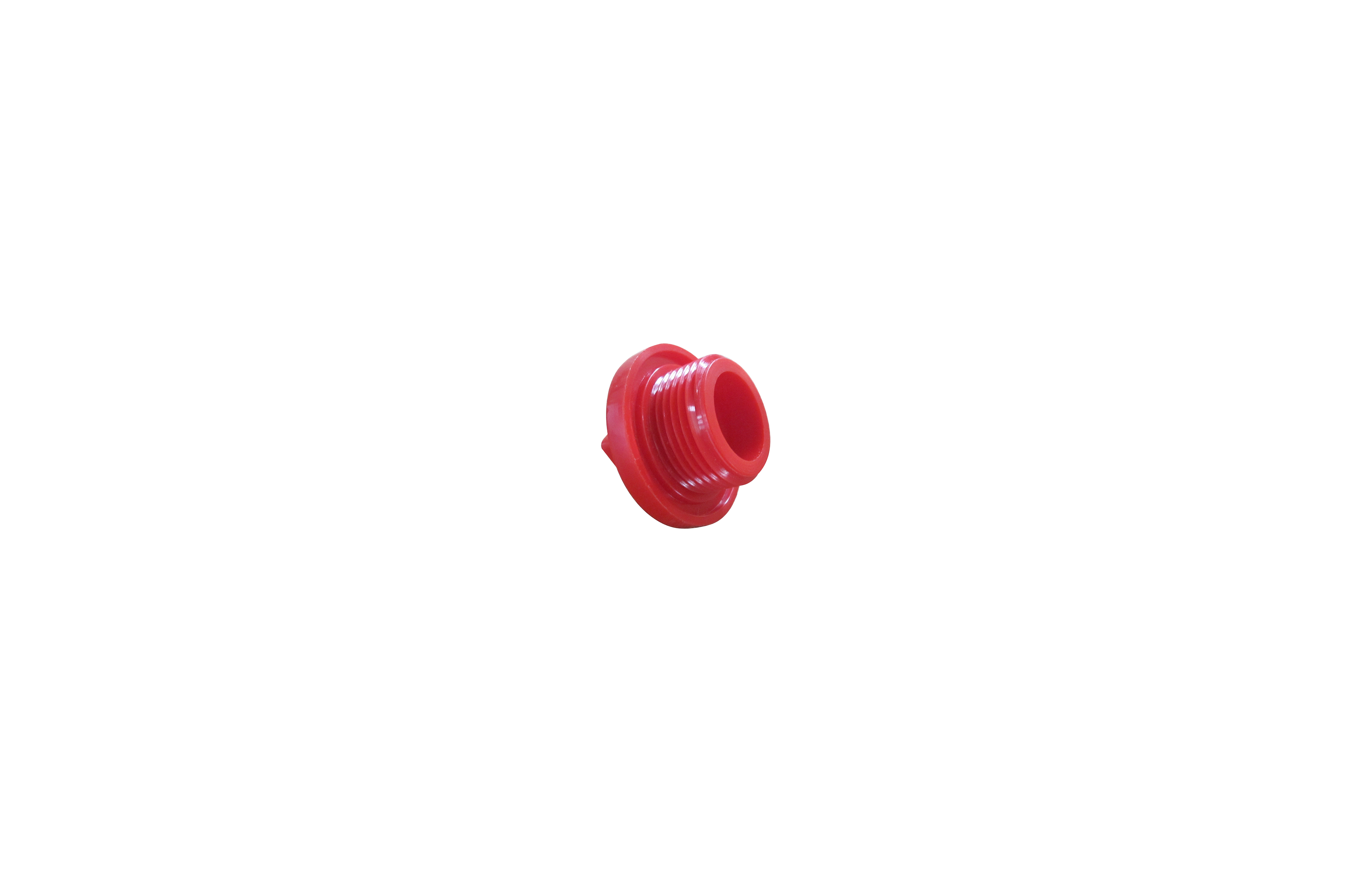

Part Name：Plug

Part Number：20000075

Download Products Information
