STANDARD PRESSURE VESSELS

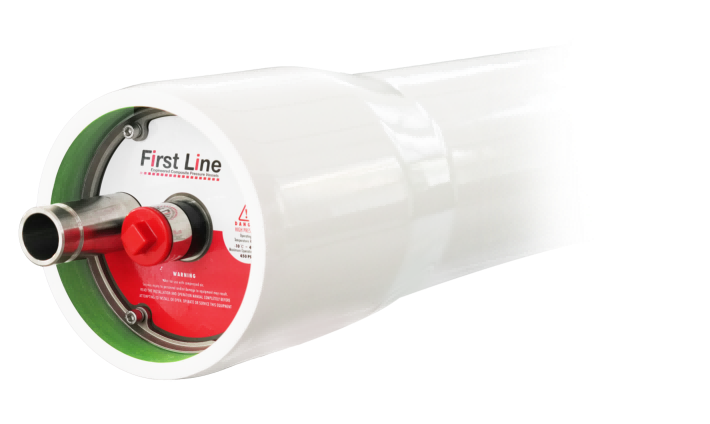

Models F80-450E
Contact Us
  • End Entry Design
    End Entry Design
    • Available in 450 psi pressure rating
    • Accommodates standard make 8" Membrane Element
  • Key Features
    Key Features
    • Operating Temp Range: -10°C ---49°C
    • Test pressure
      • Standard: 1.5x Design Pressure
      • ASME: 1.1x Design Pressure
    • Internal permeate port not to exceed 125PSI(0.88MPa)
    • Operating pH Range: 3 – 11
    • Cleaning pH Range: 2 – 12 (less than 30 minutes)
    • Please operate in accordance with User Guide

All information is subject to change without prior notice. Please contact us for the latest product information and specifications.

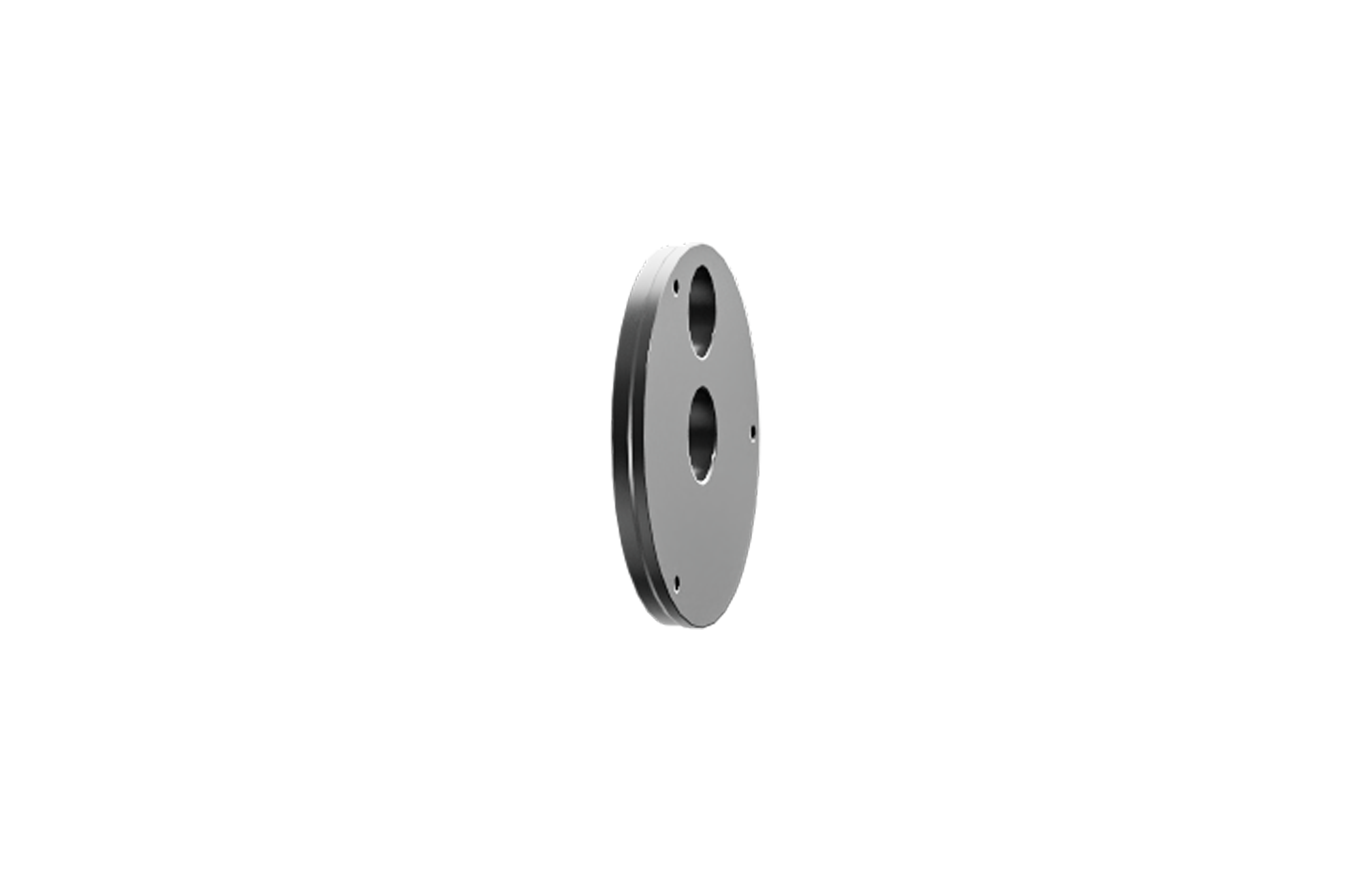

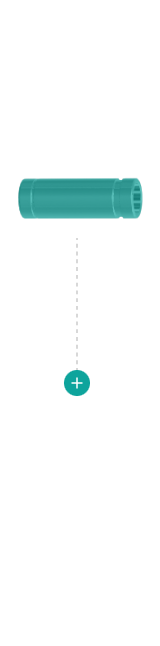

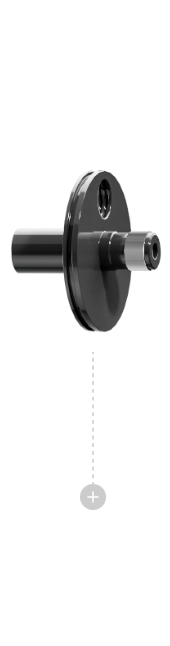

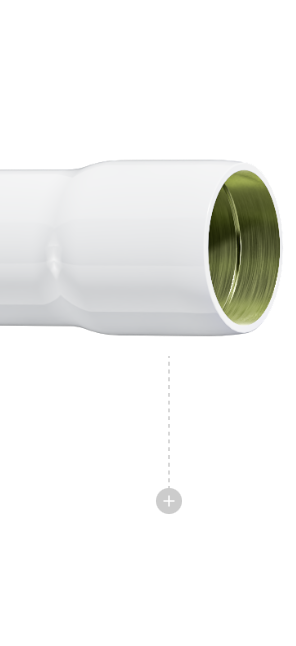

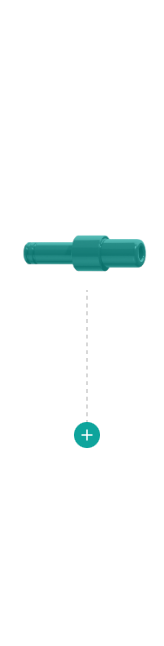

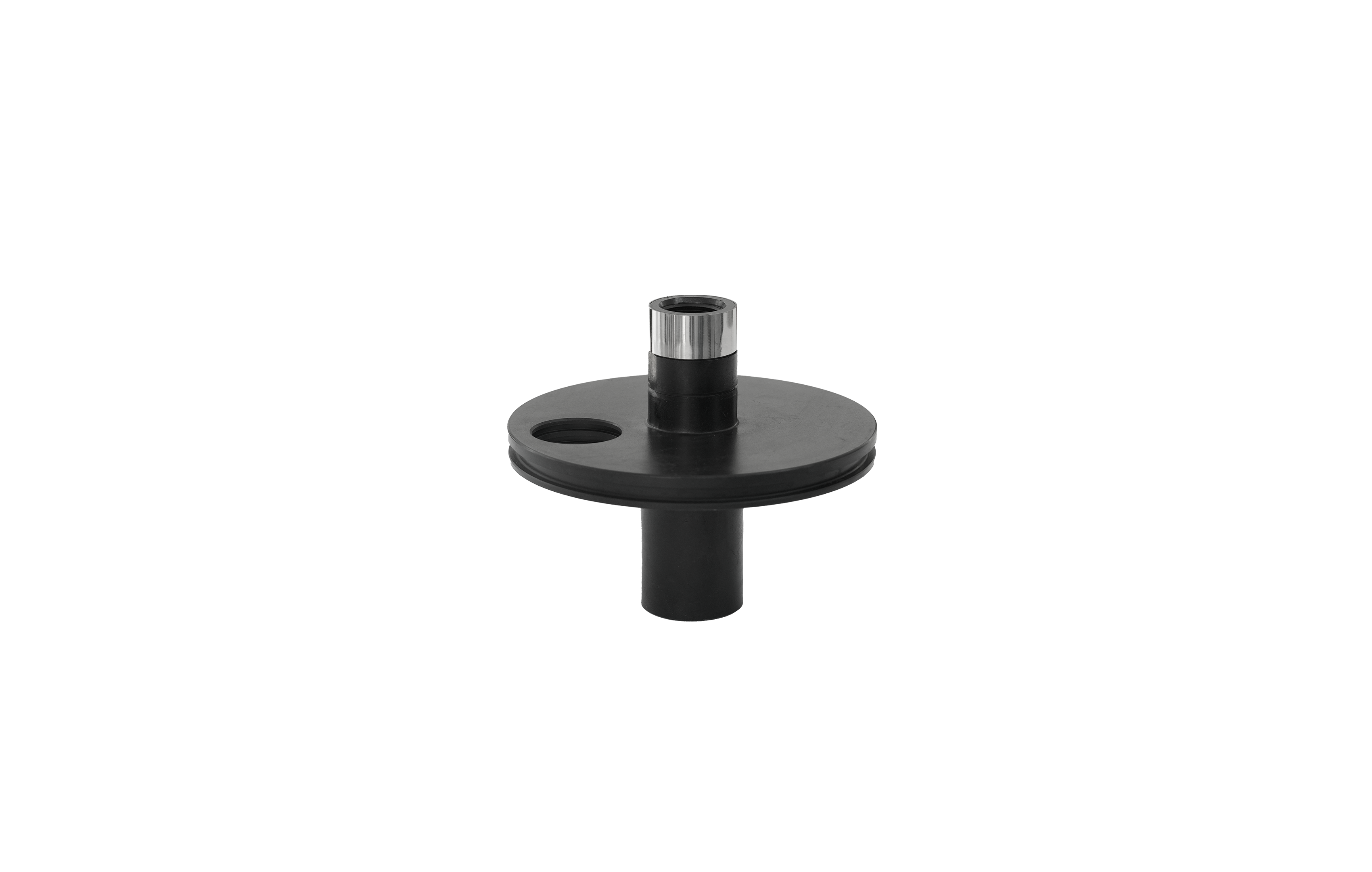

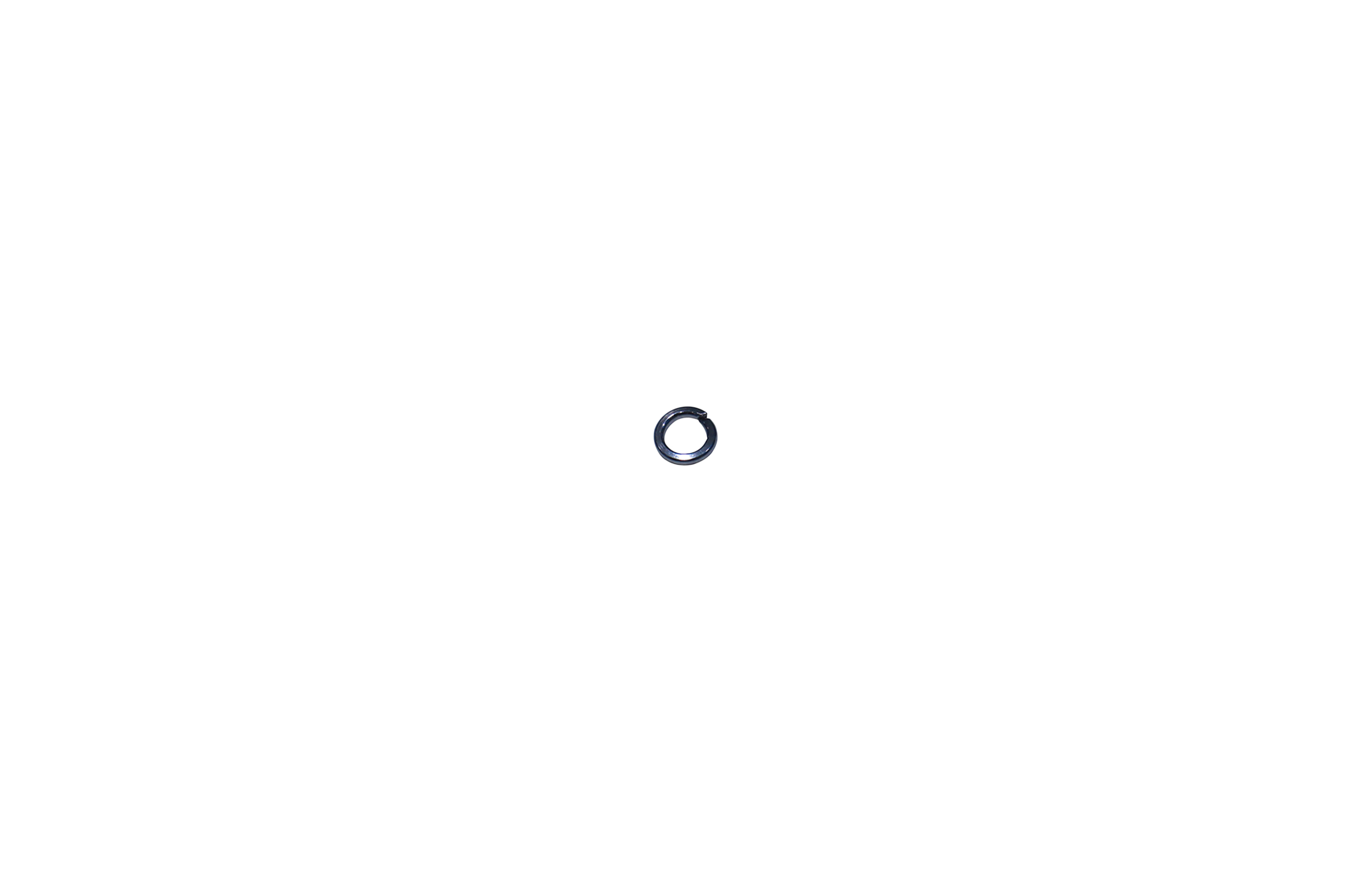

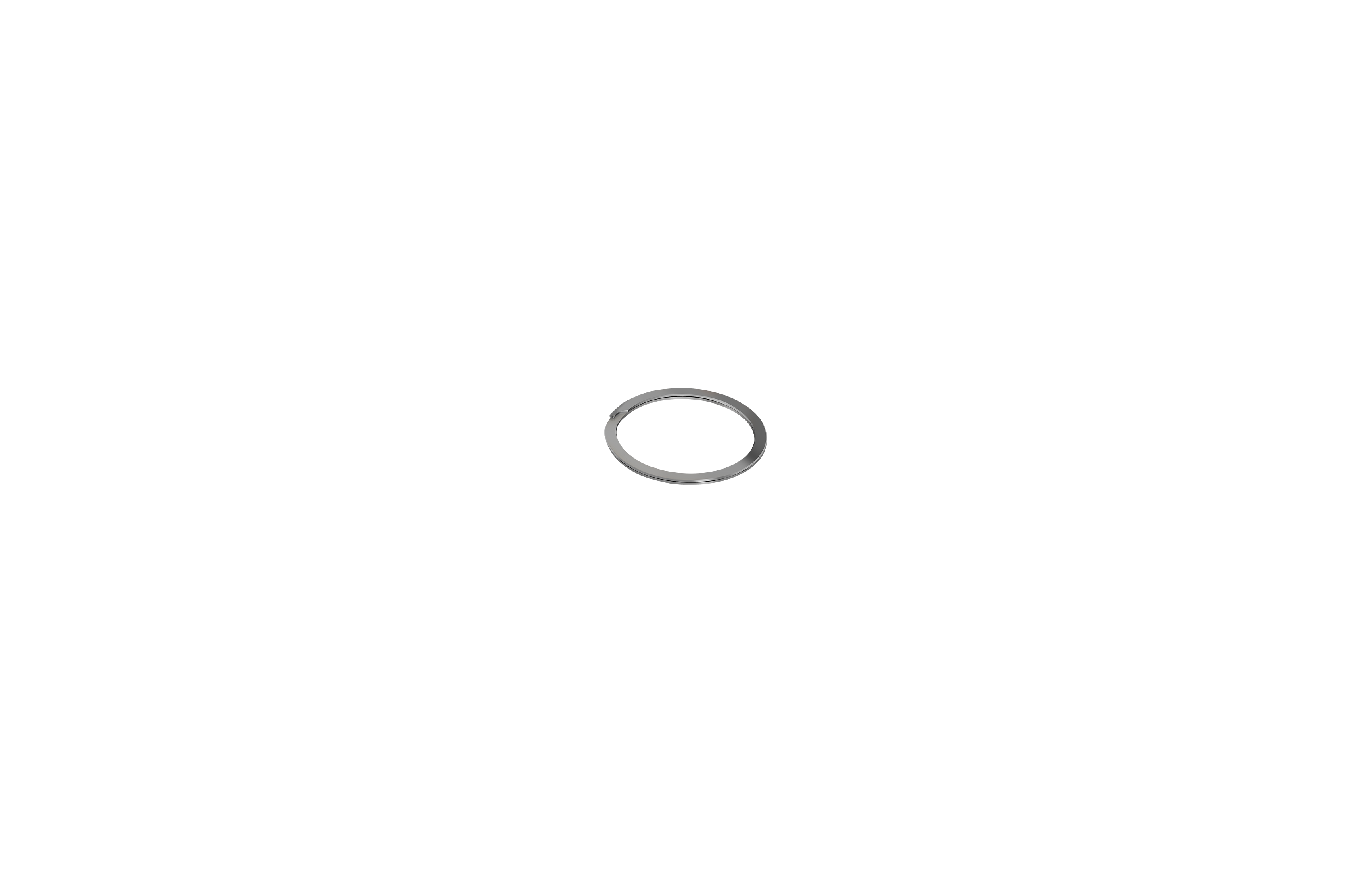

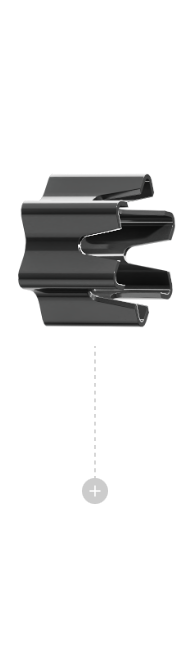

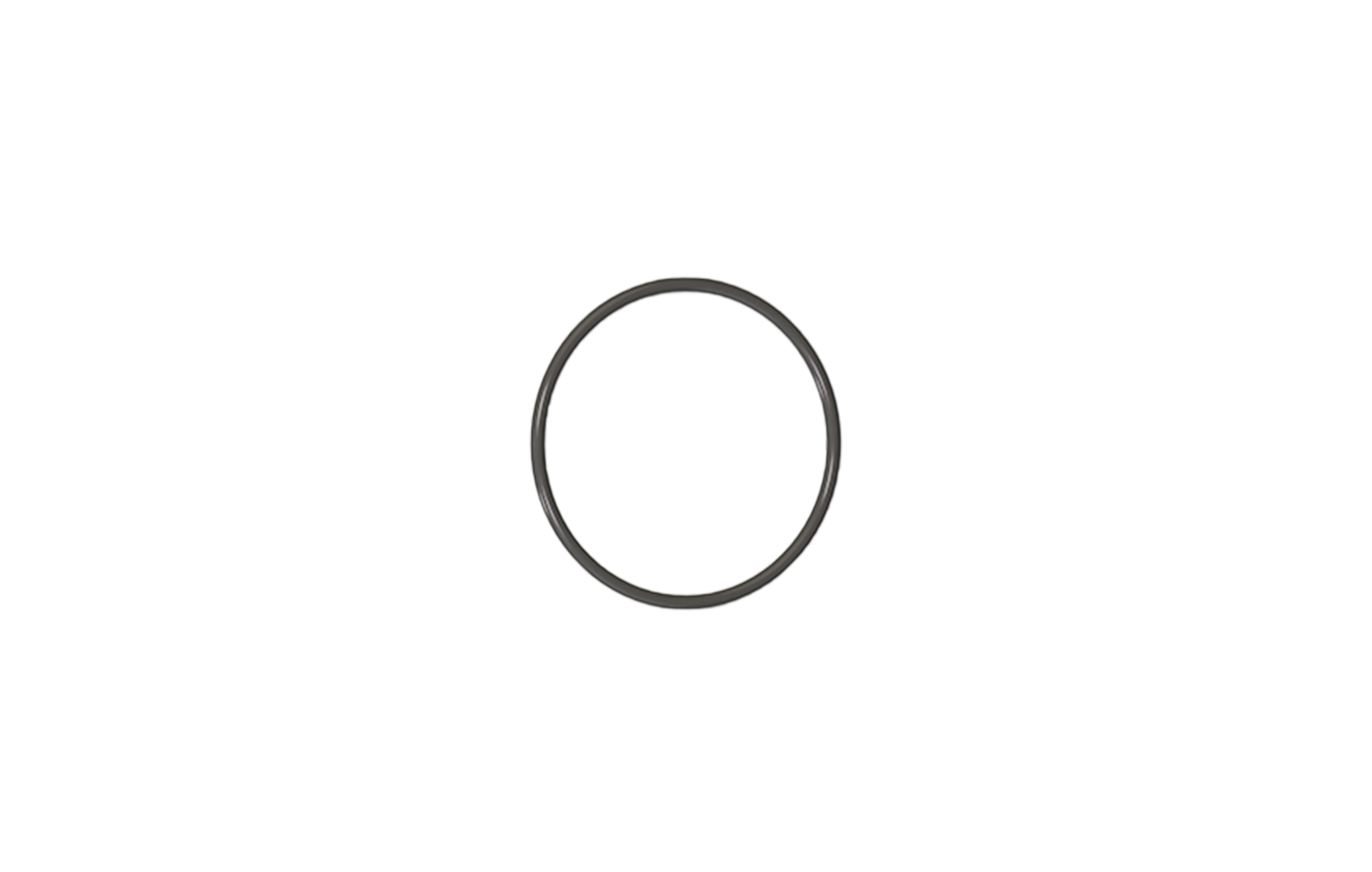

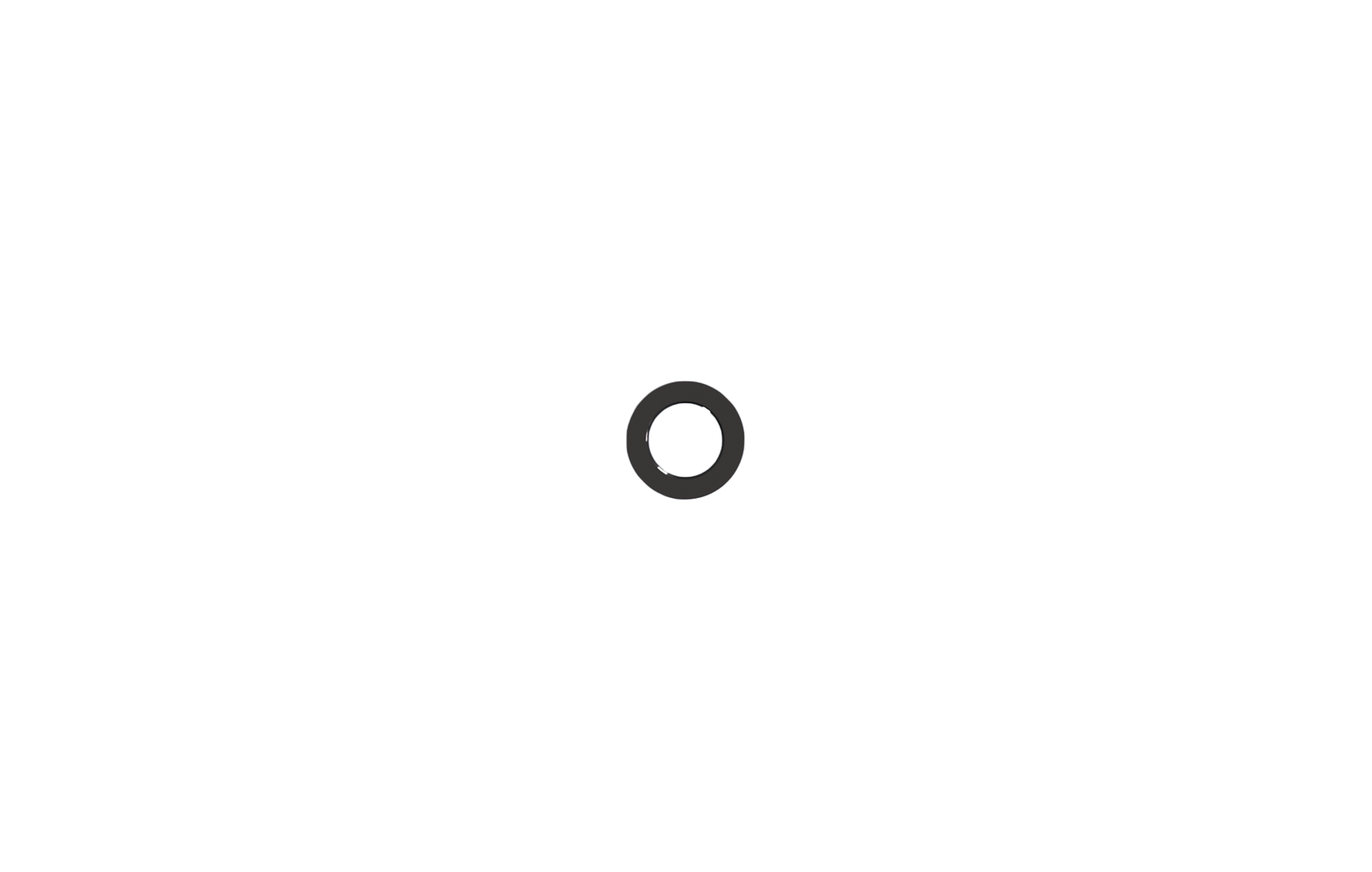

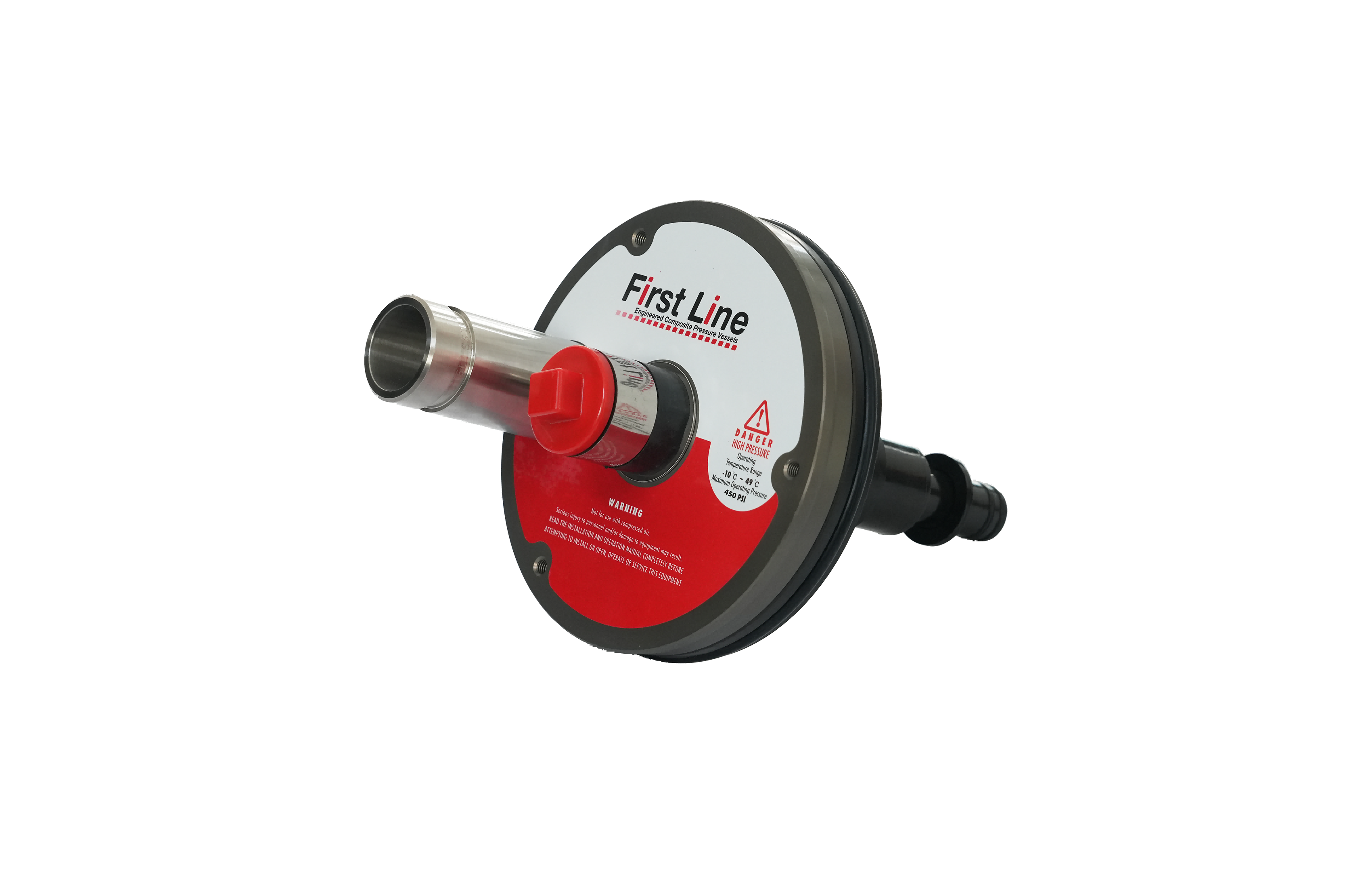

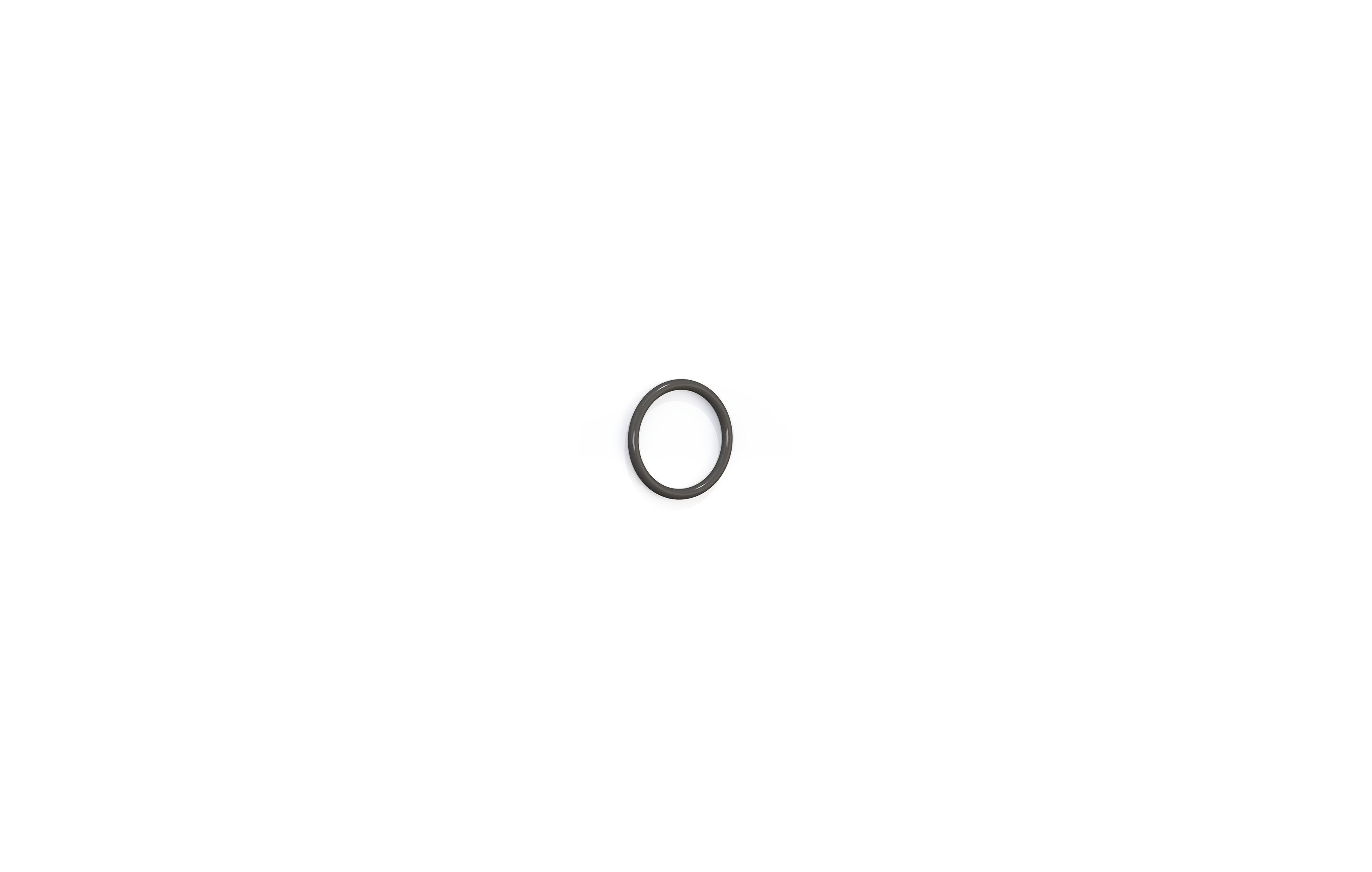

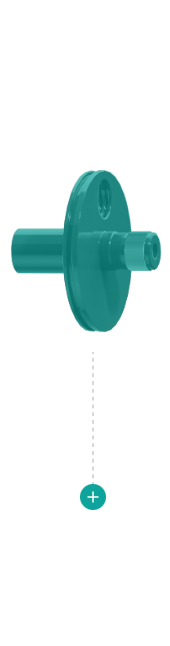

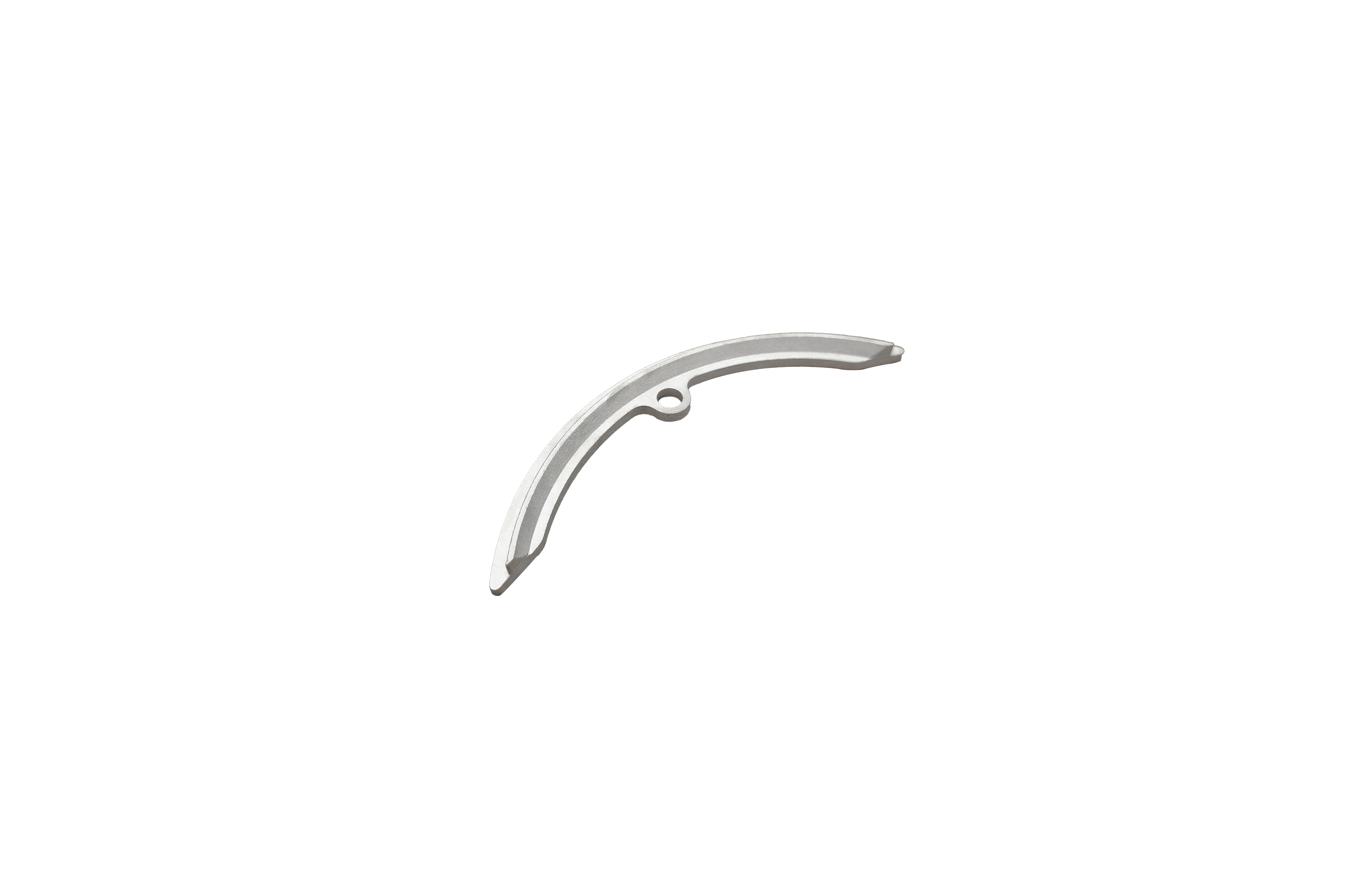

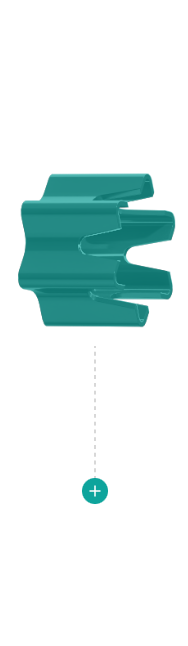

3D View of End Cap Assembly
整体端板 整体端板
止推环 止推环
密封圈 密封圈
垫片 垫片

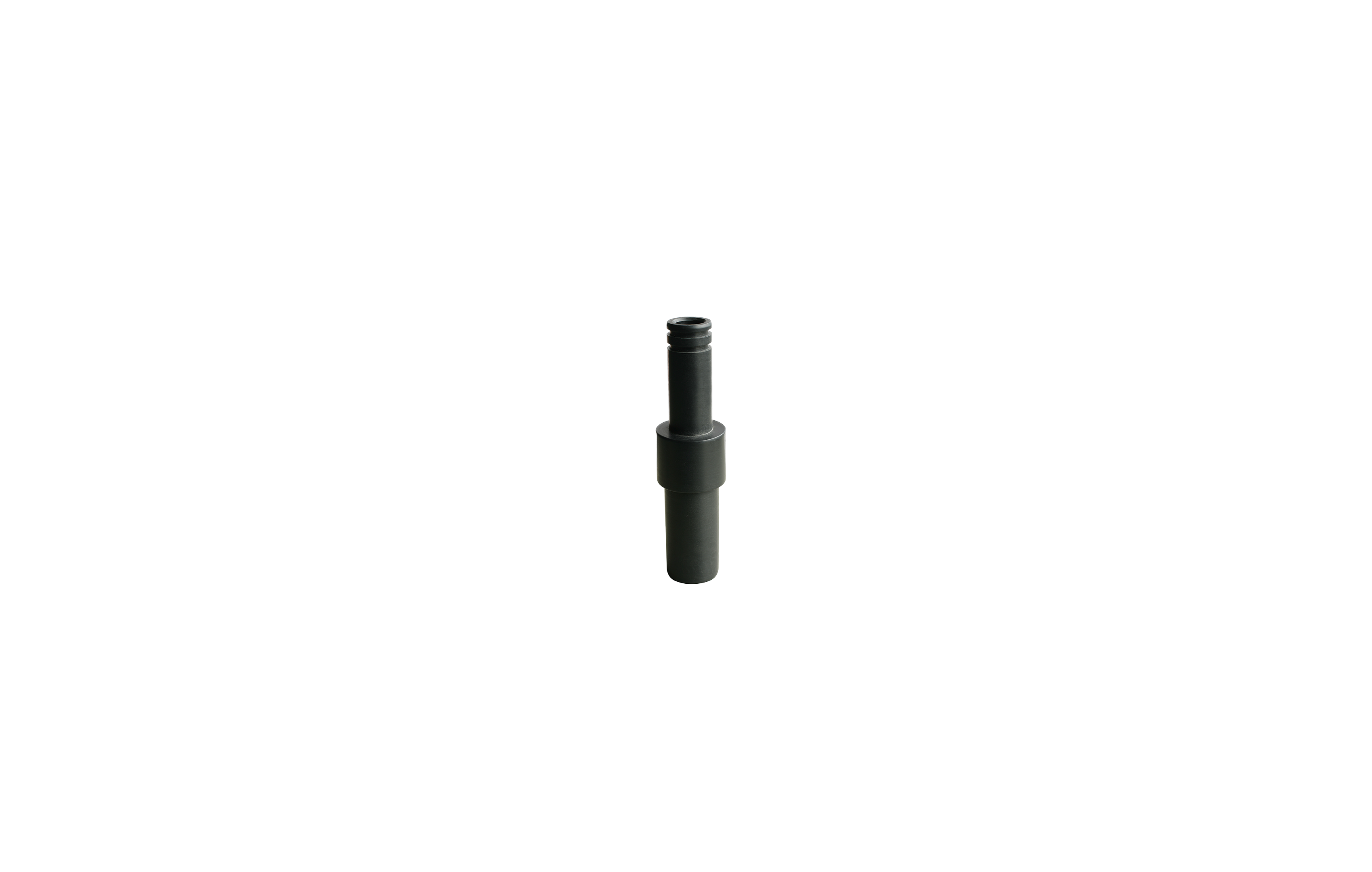

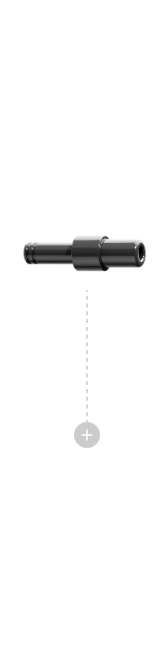

适配器 适配器
密封圈 密封圈
大密封圈 大密封圈
密封板 密封板
密封圈 密封圈
支撑板 支撑板
锁圈 锁圈

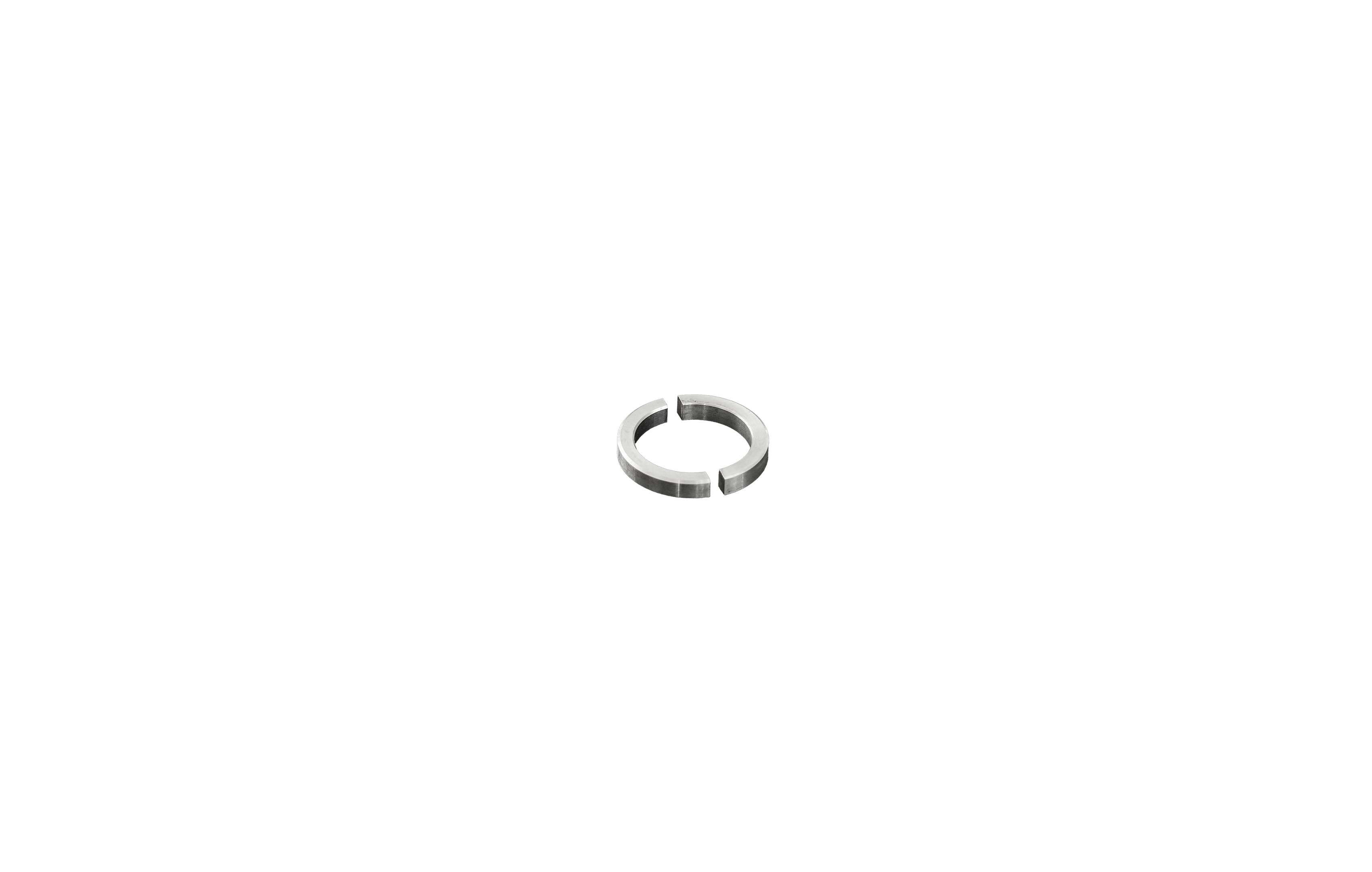

两半环 两半环

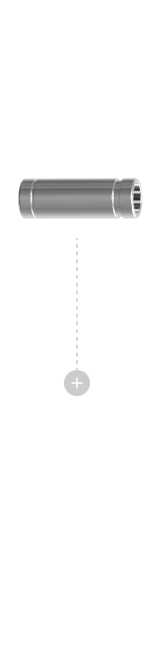

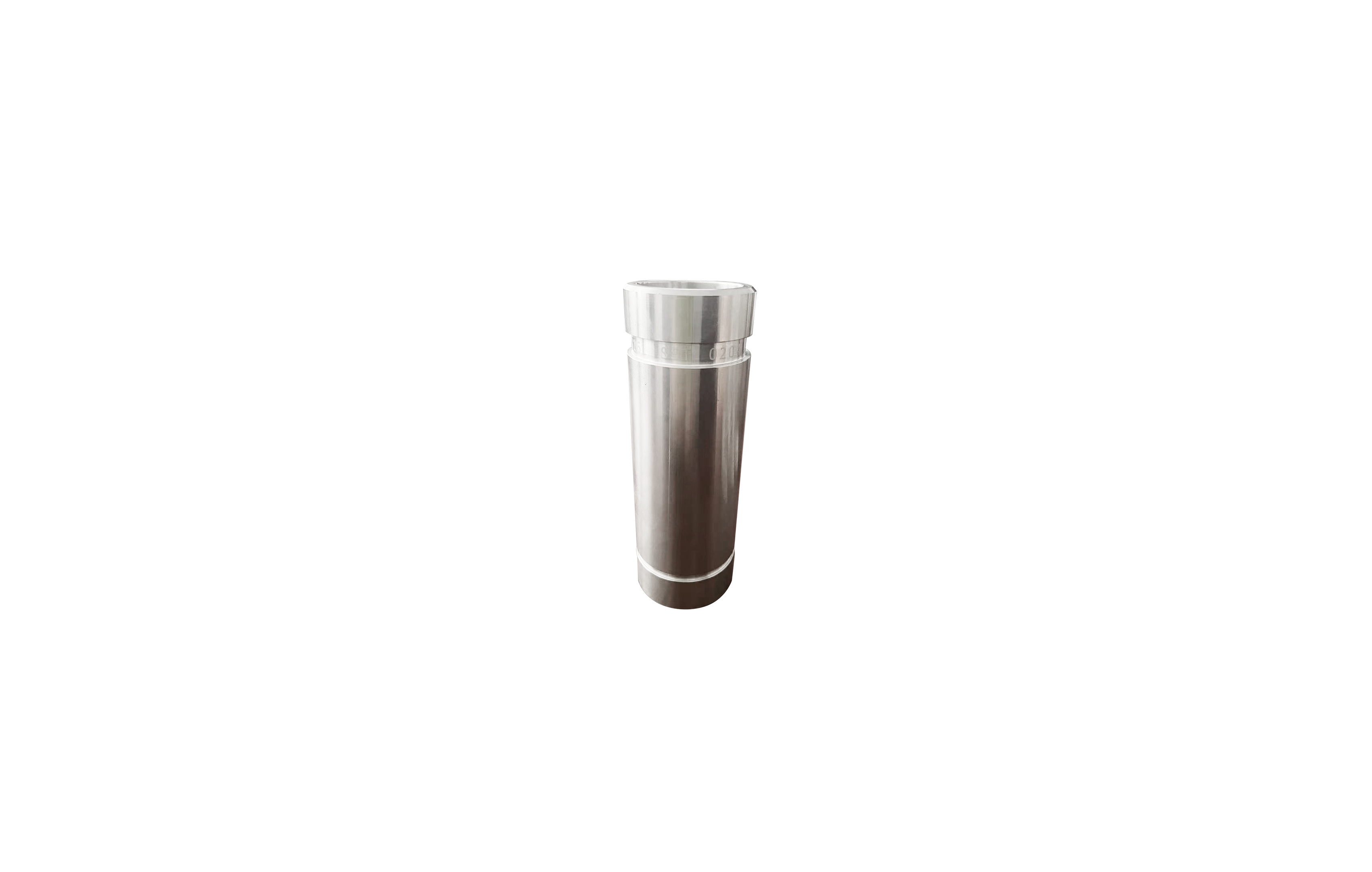

原浓水管 原浓水管
挡块 挡块
弹簧垫 弹簧垫

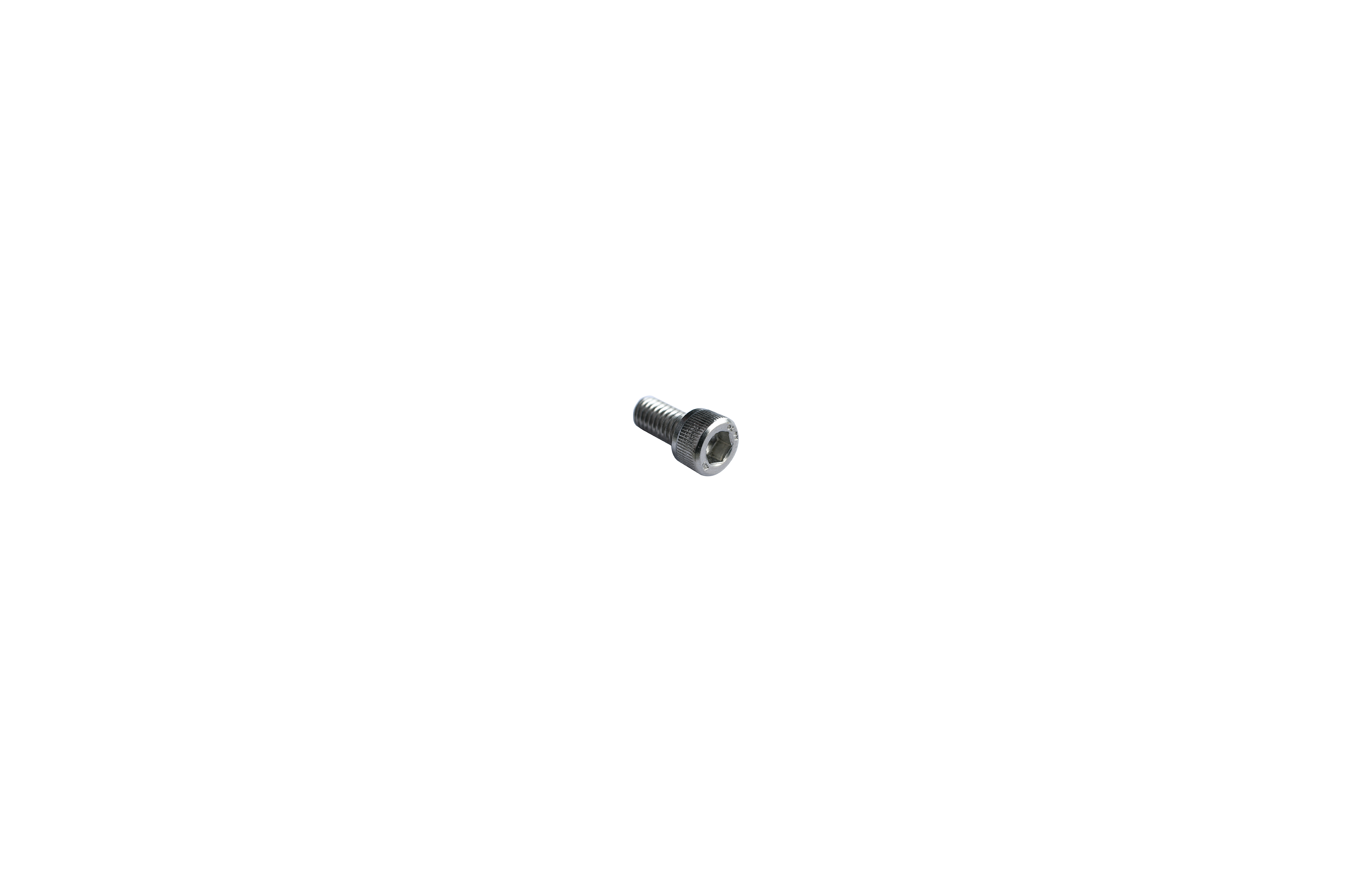

螺栓 螺栓
密封圈 密封圈

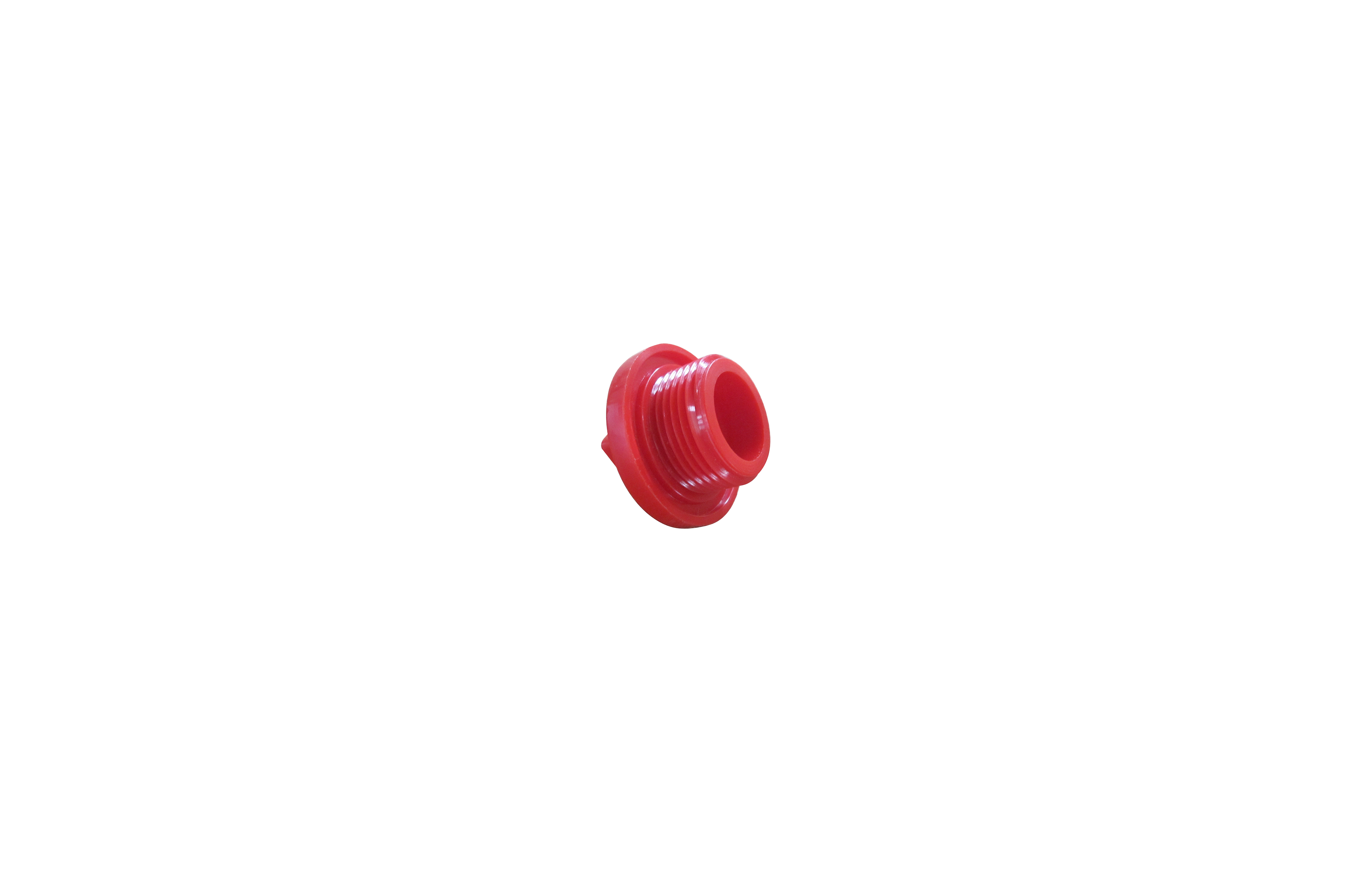

管堵 管堵

* Please click on the product component to view relevant information
