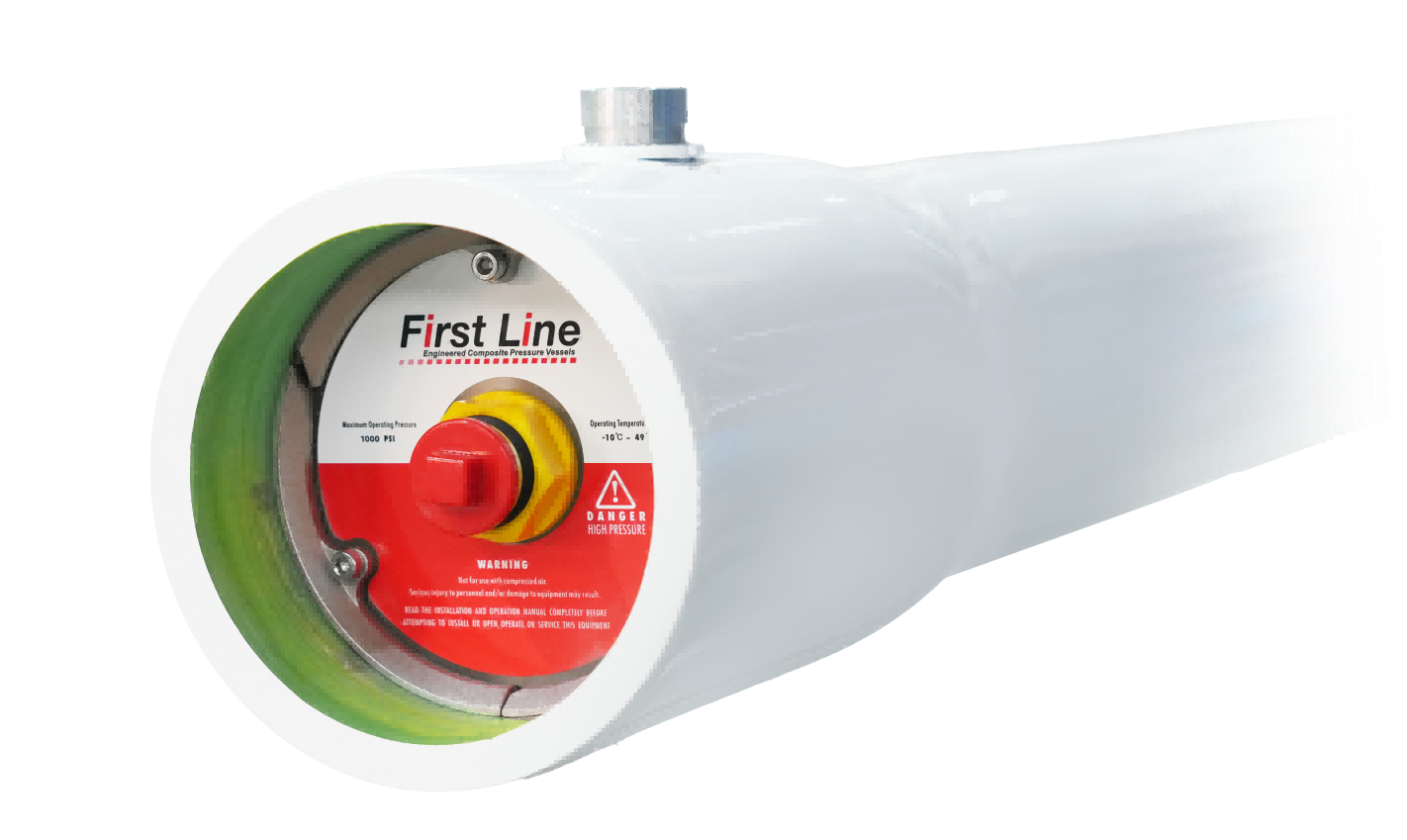

STANDARD PRESSURE VESSELS

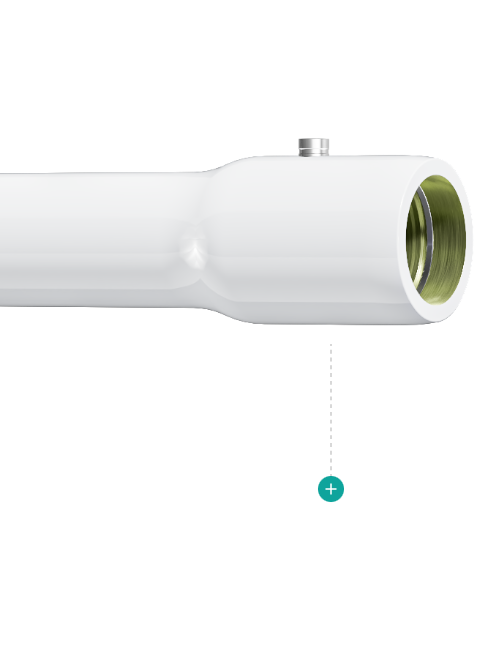

Models F80-1000S
Contact Us
  • Side Entry Design
    Side Entry Design
    • Available in 1000 psi pressure rating
    • Accommodates standard make 4" Membrane Element
  • Key Features
    Key Features
    • Operating Temp Range: -10°C ---49°C
    • Test pressure
      • Standard: 1.5x Design Pressure
      • ASME: 1.1x Design Pressure
    • Internal permeate port not to exceed 125PSI(0.88MPa)
    • Operating pH Range: 3 – 11
    • Cleaning pH Range: 2 – 12 (less than 30 minutes)
    • Please operate in accordance with User Guide

All information is subject to change without prior notice. Please contact us for the latest product information and specifications.

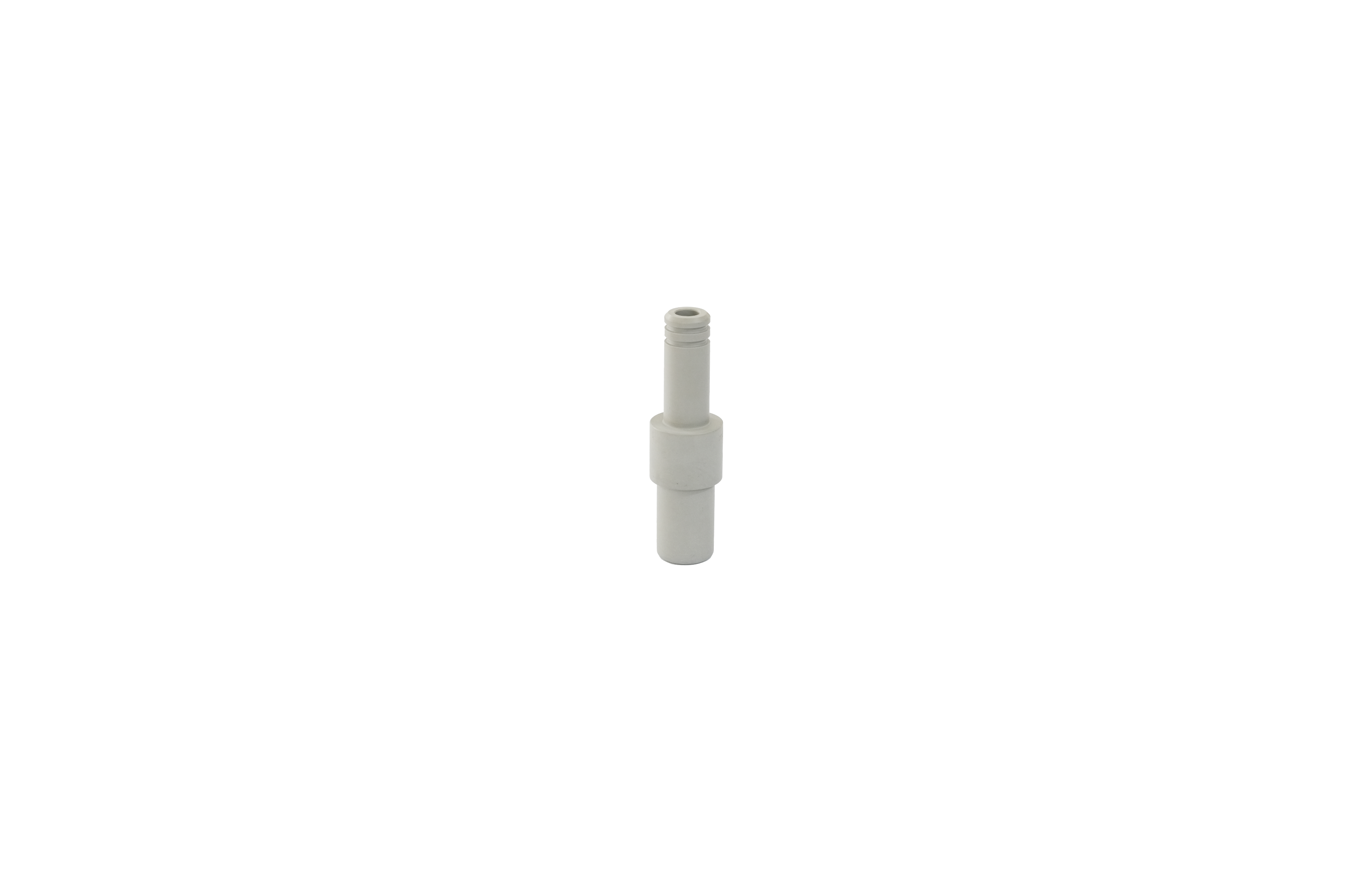

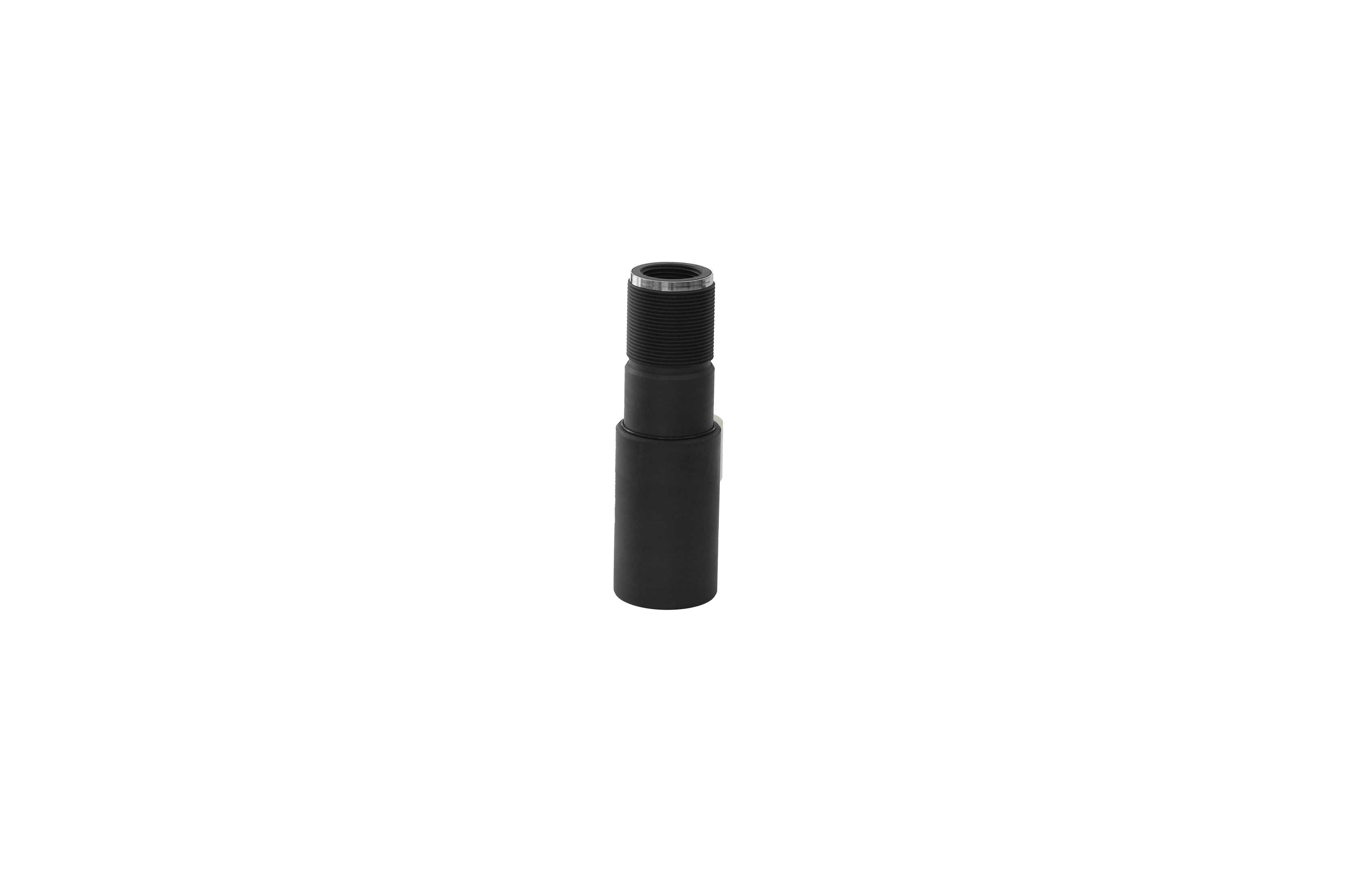

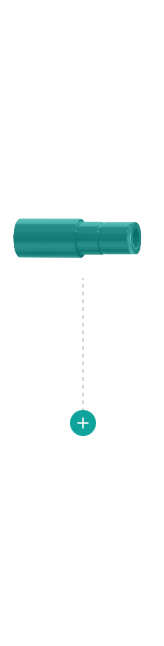

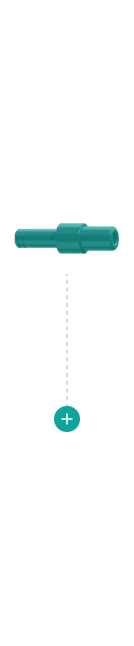

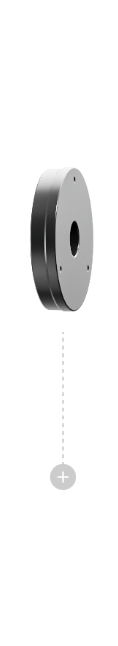

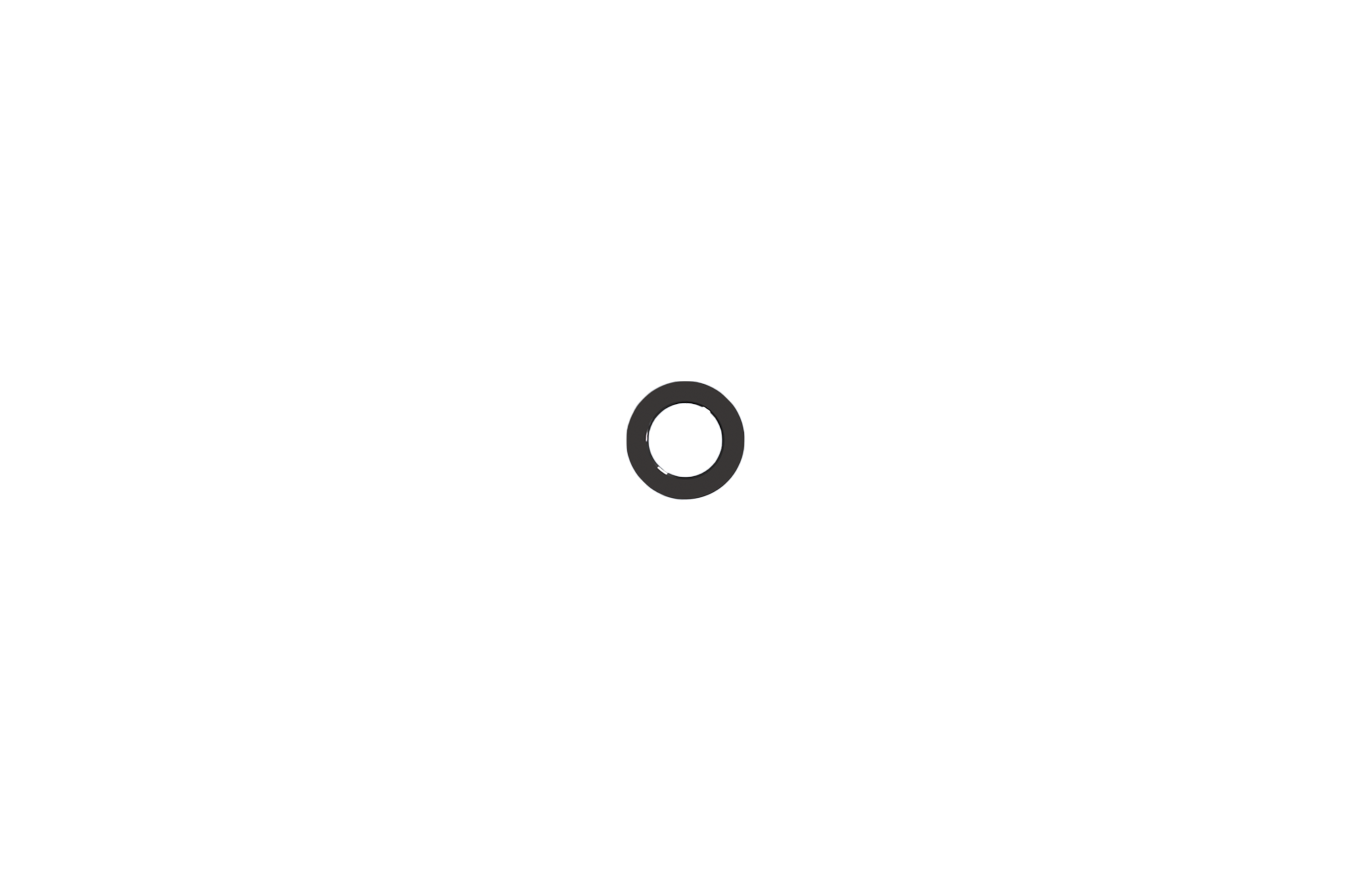

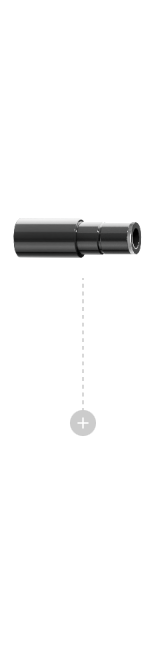

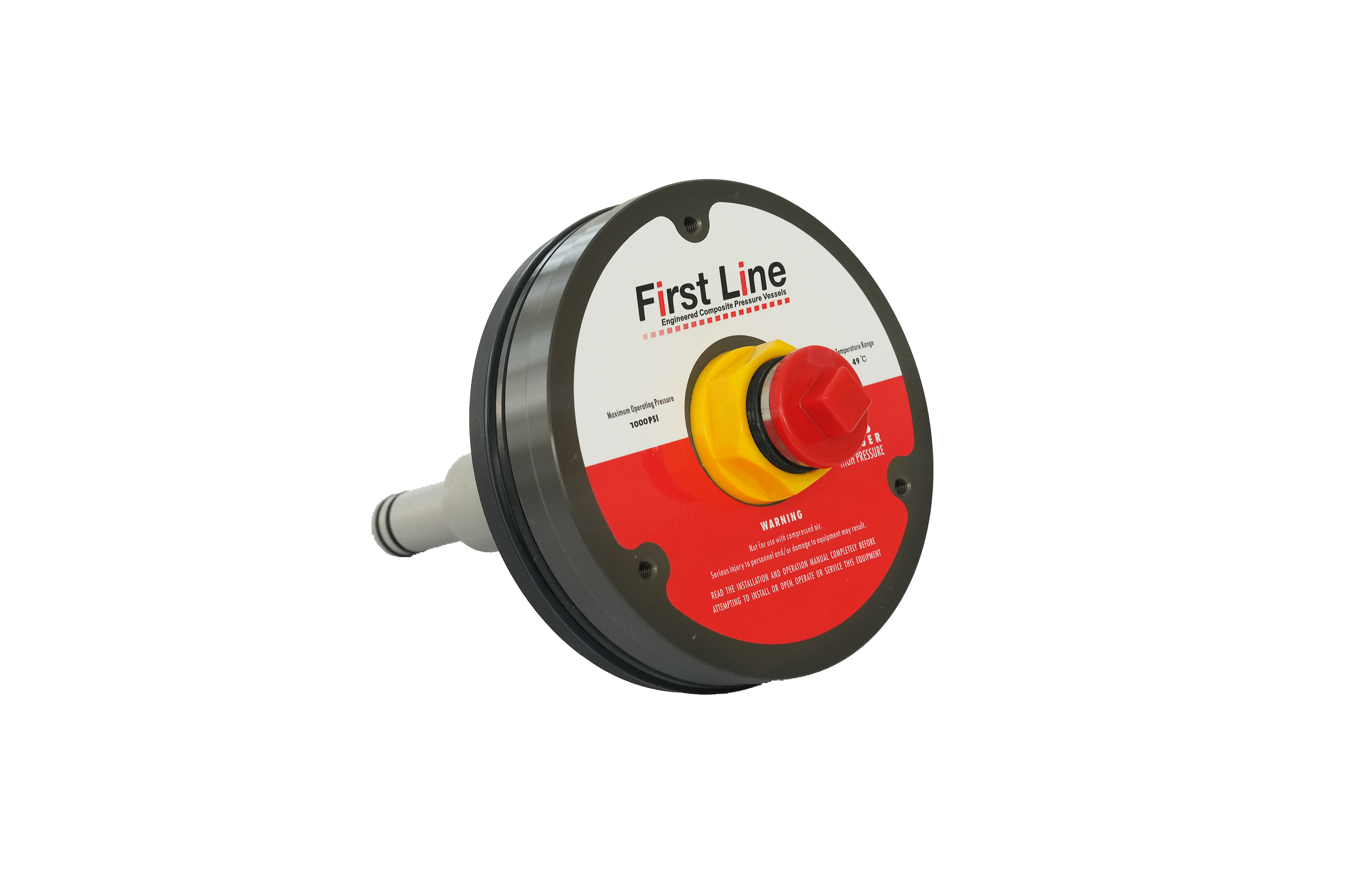

3D View of End Cap Assembly
整体端板 整体端板

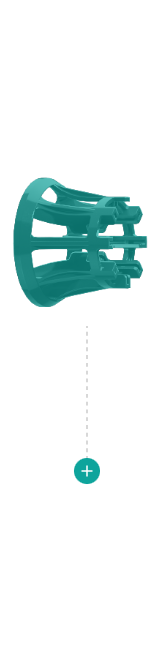

止推环 止推环

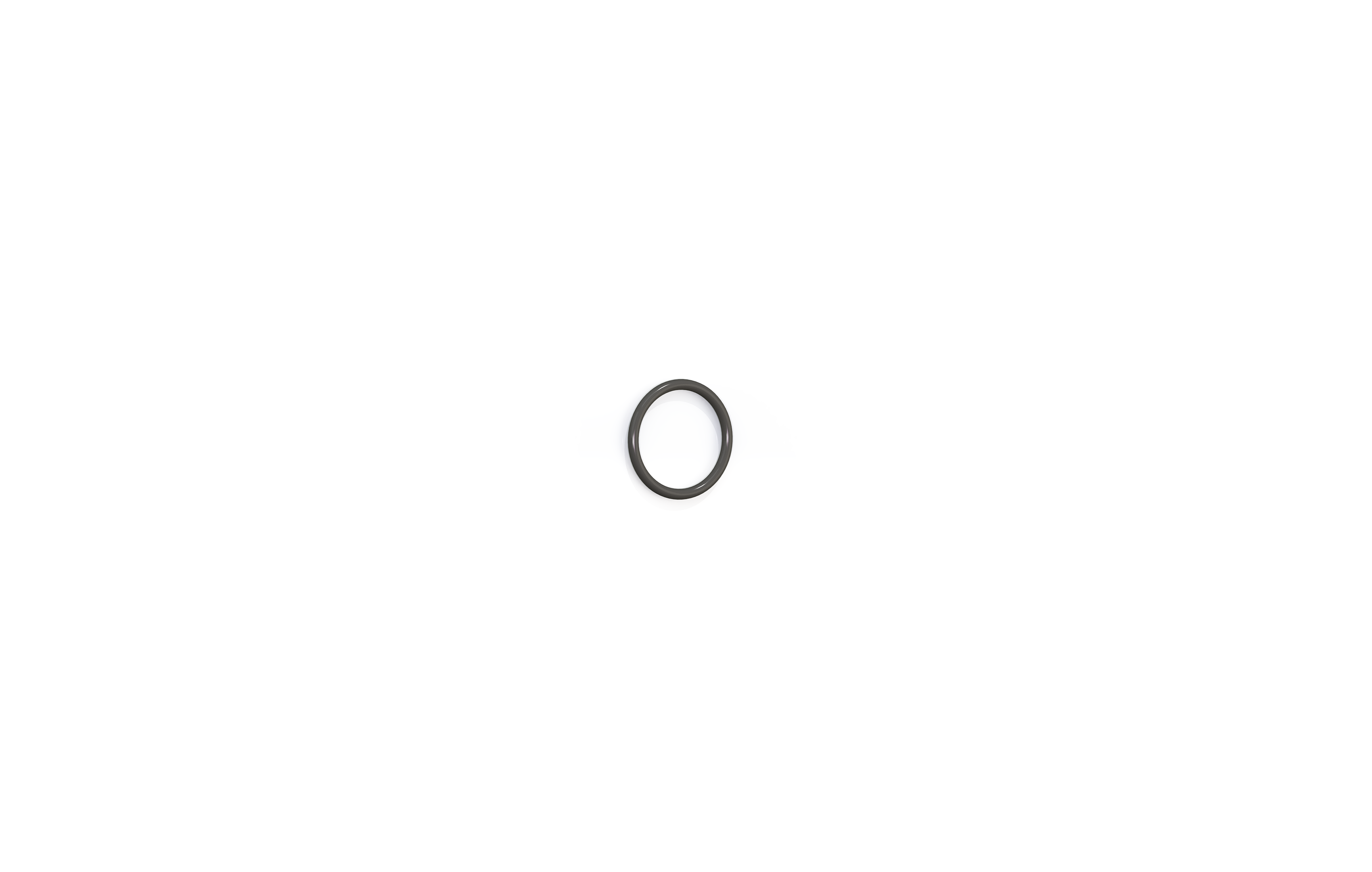

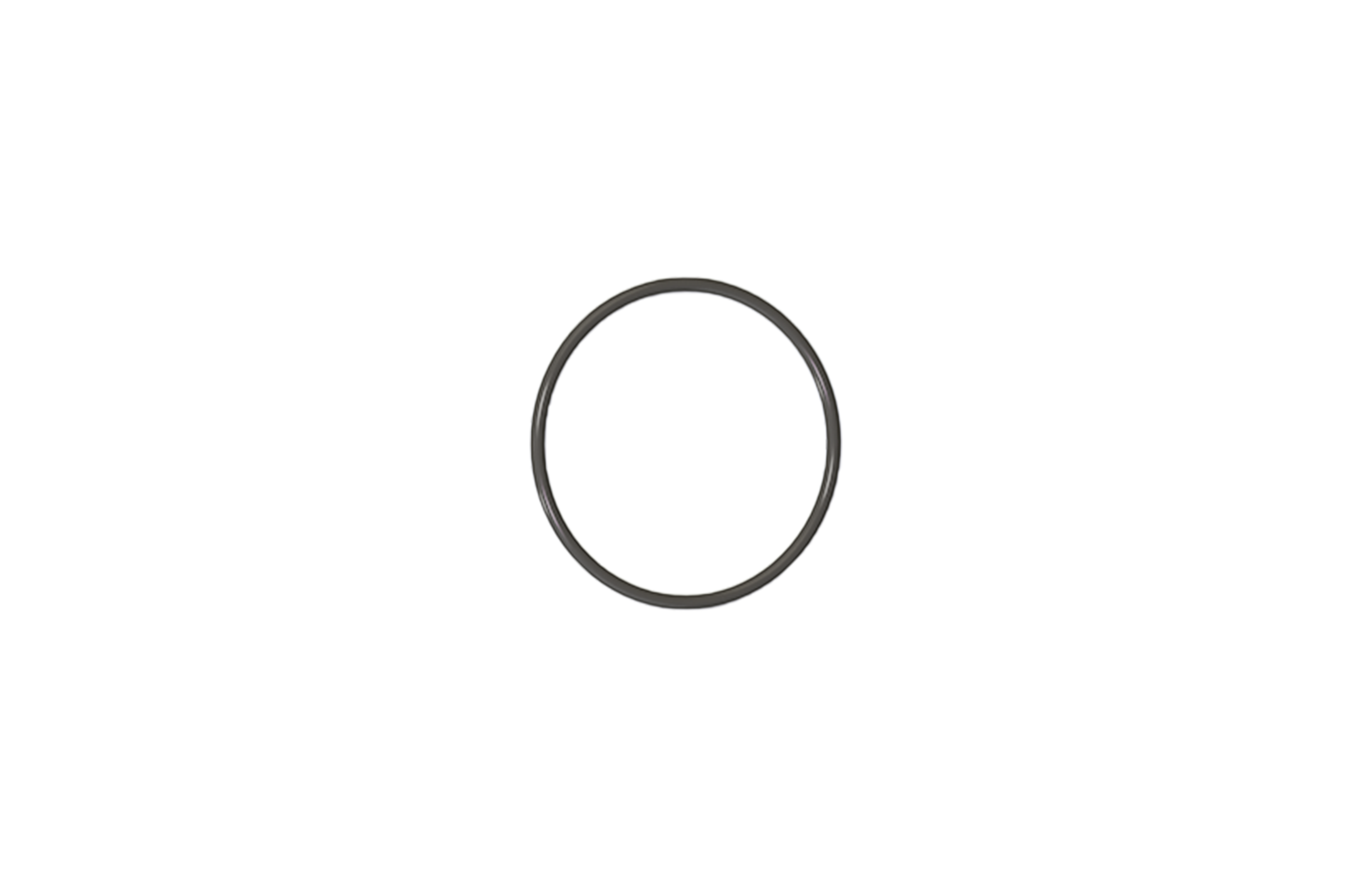

密封圈 密封圈
垫片 垫片

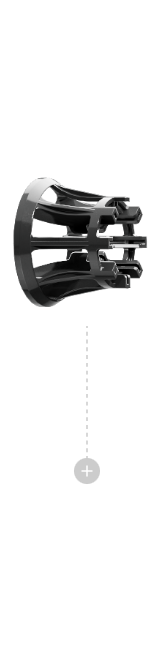

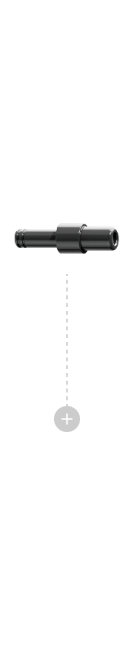

适配器 适配器
密封圈 密封圈
净水出口 净水出口
密封圈 密封圈
密封圈 密封圈

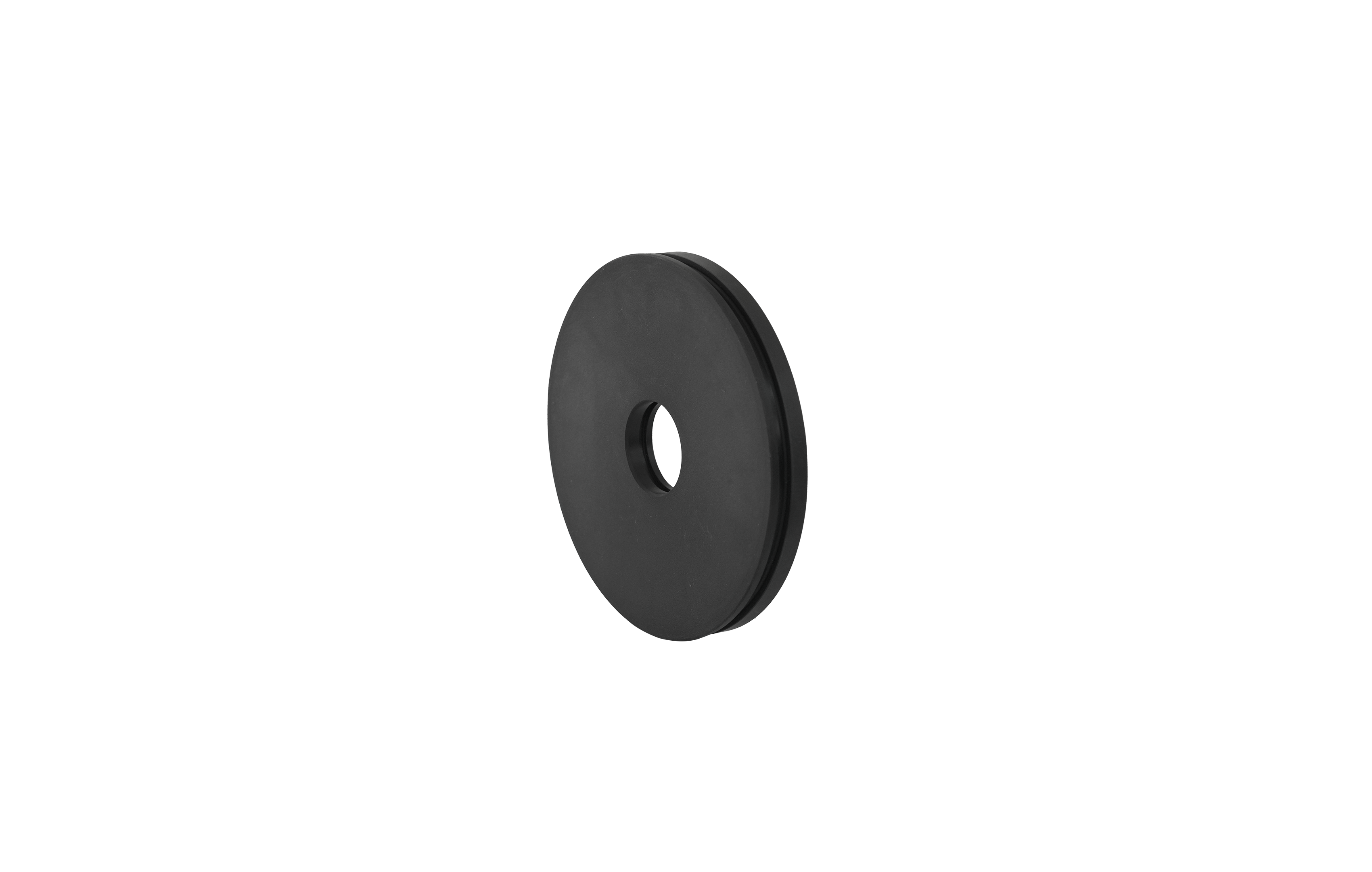

分体密封板 分体密封板

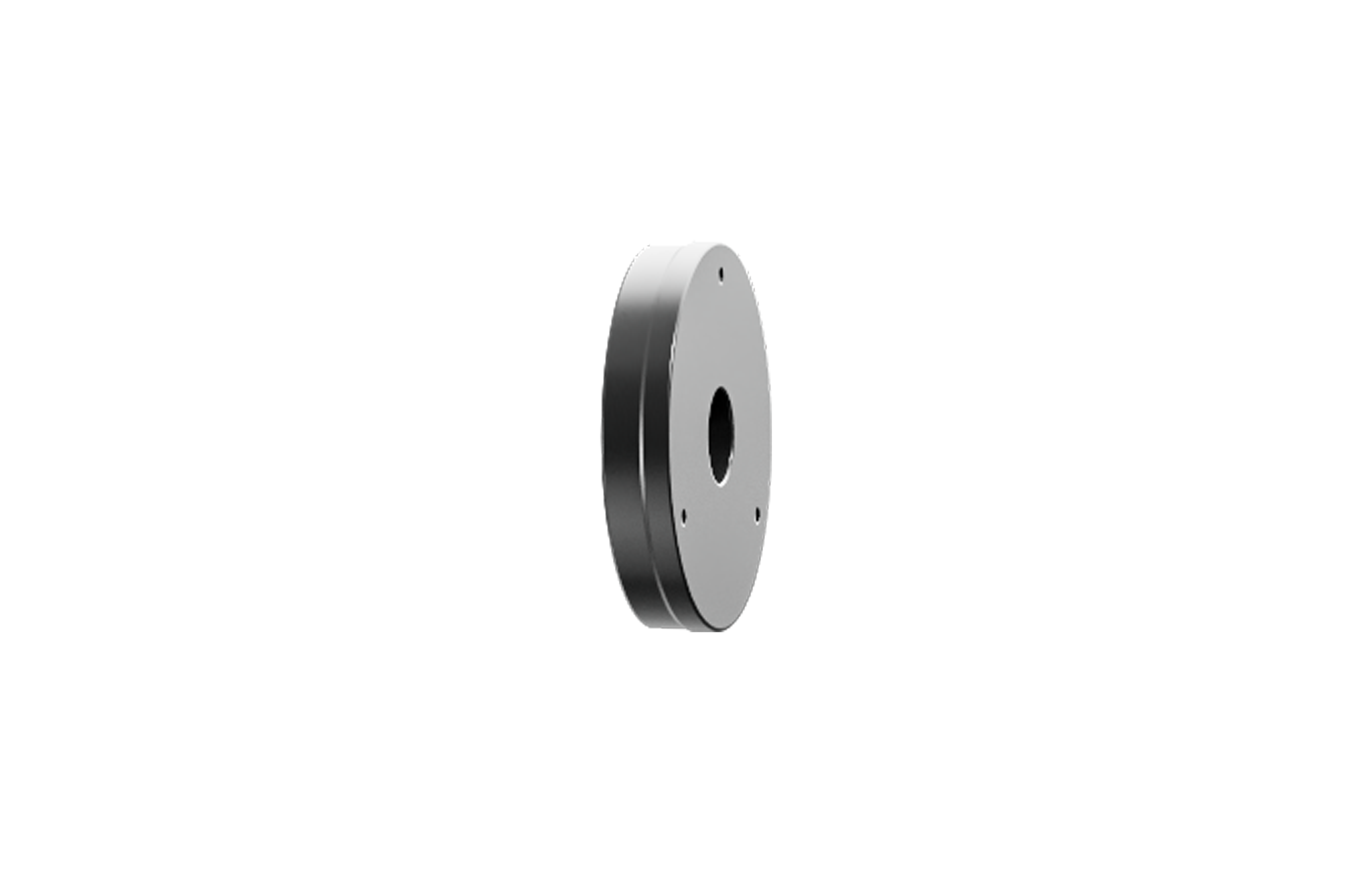

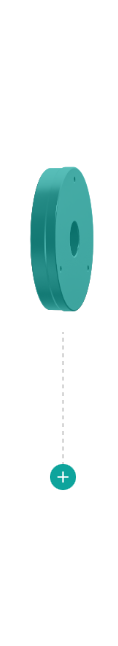

支撑板 支撑板

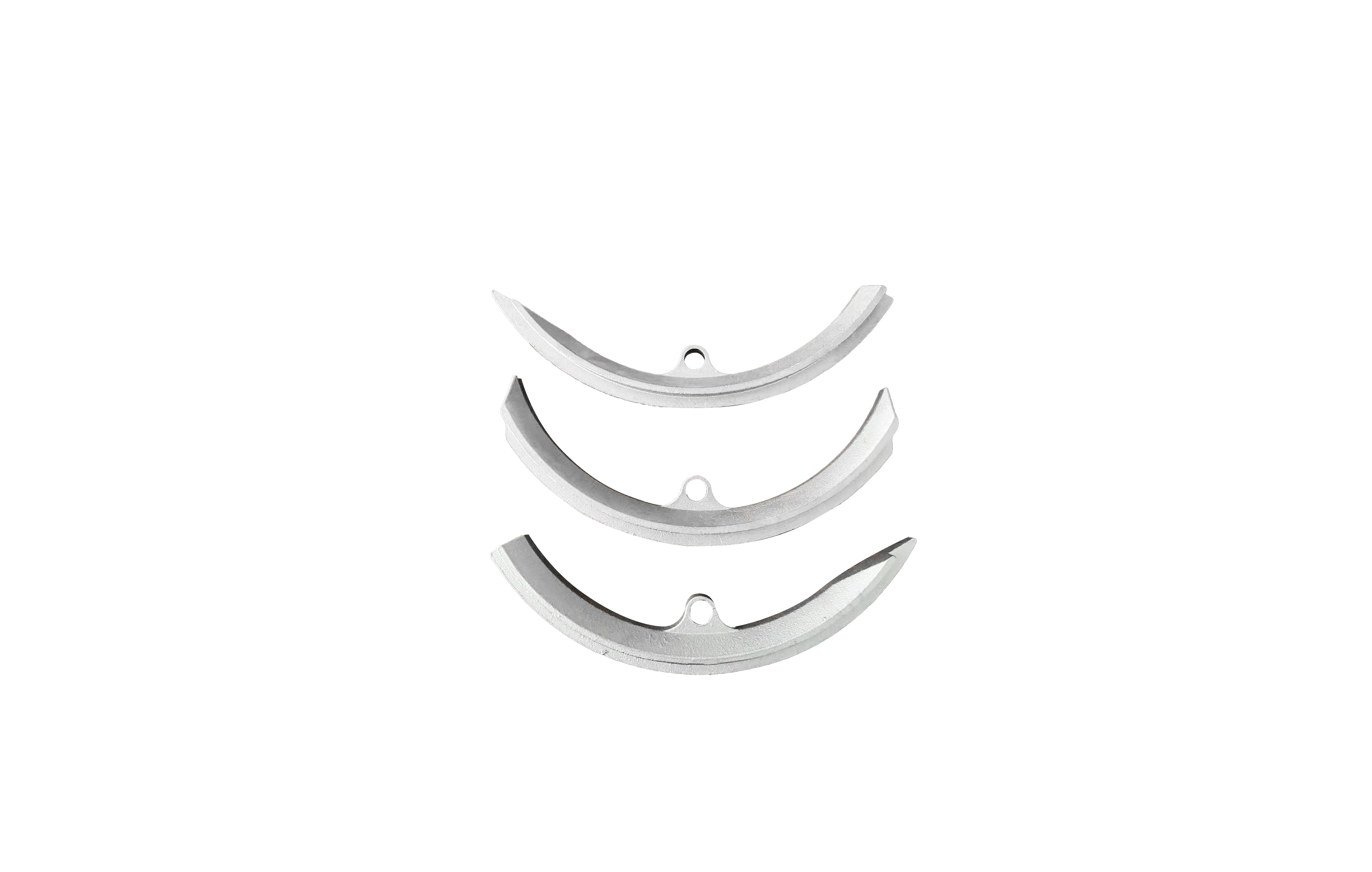

挡块 挡块

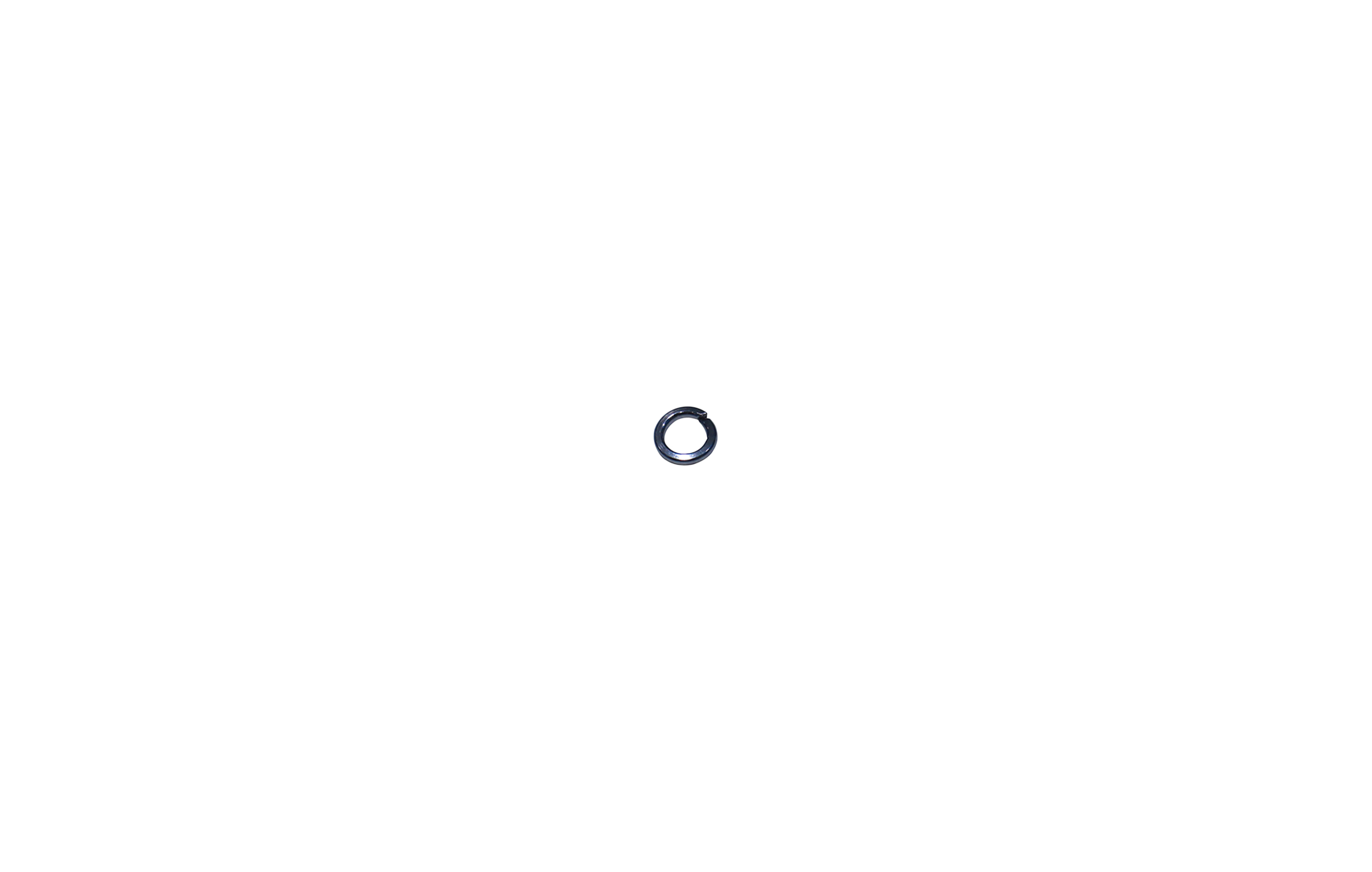

弹簧垫 弹簧垫

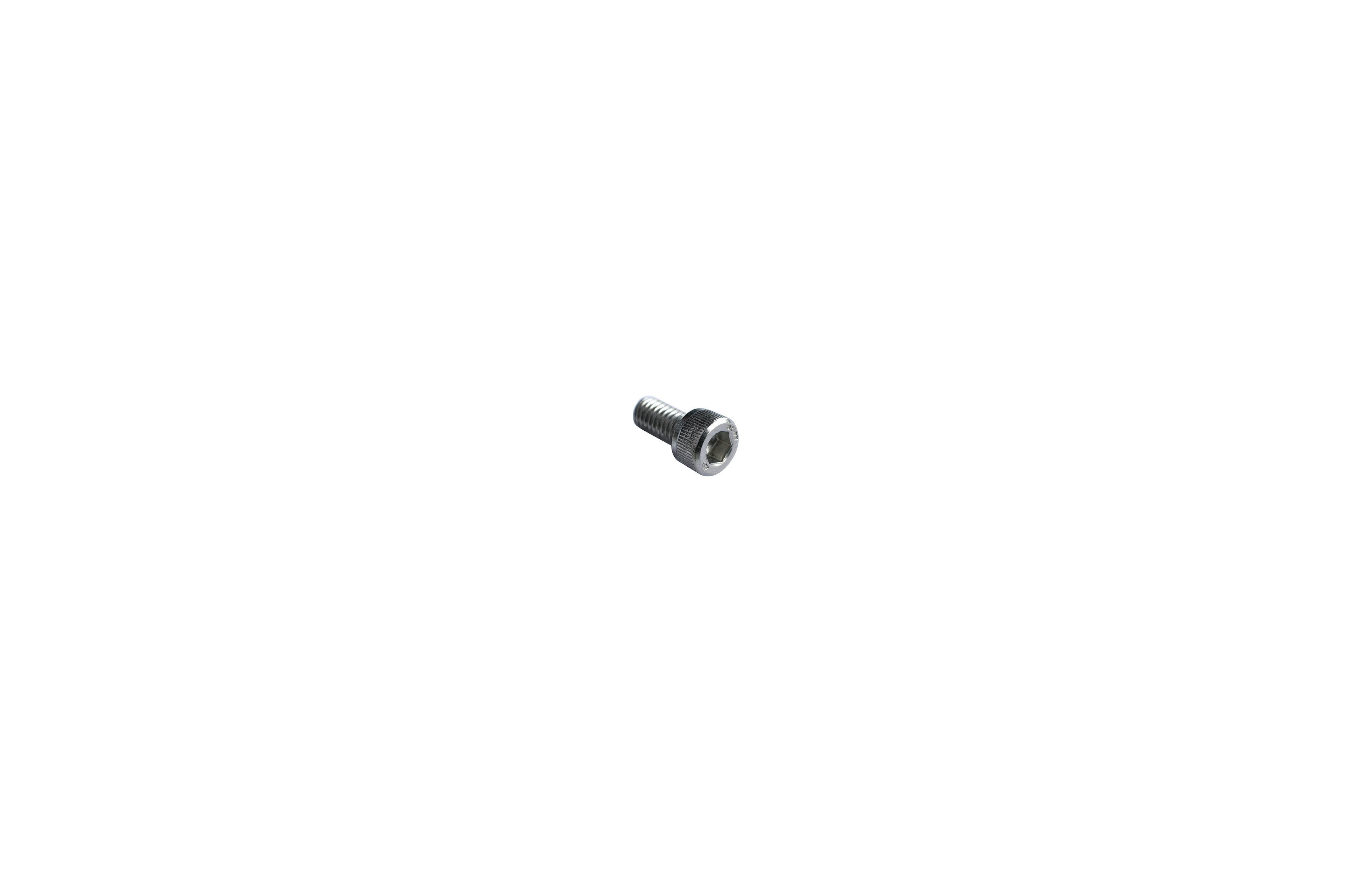

螺栓 螺栓
螺母 螺母
密封圈 密封圈

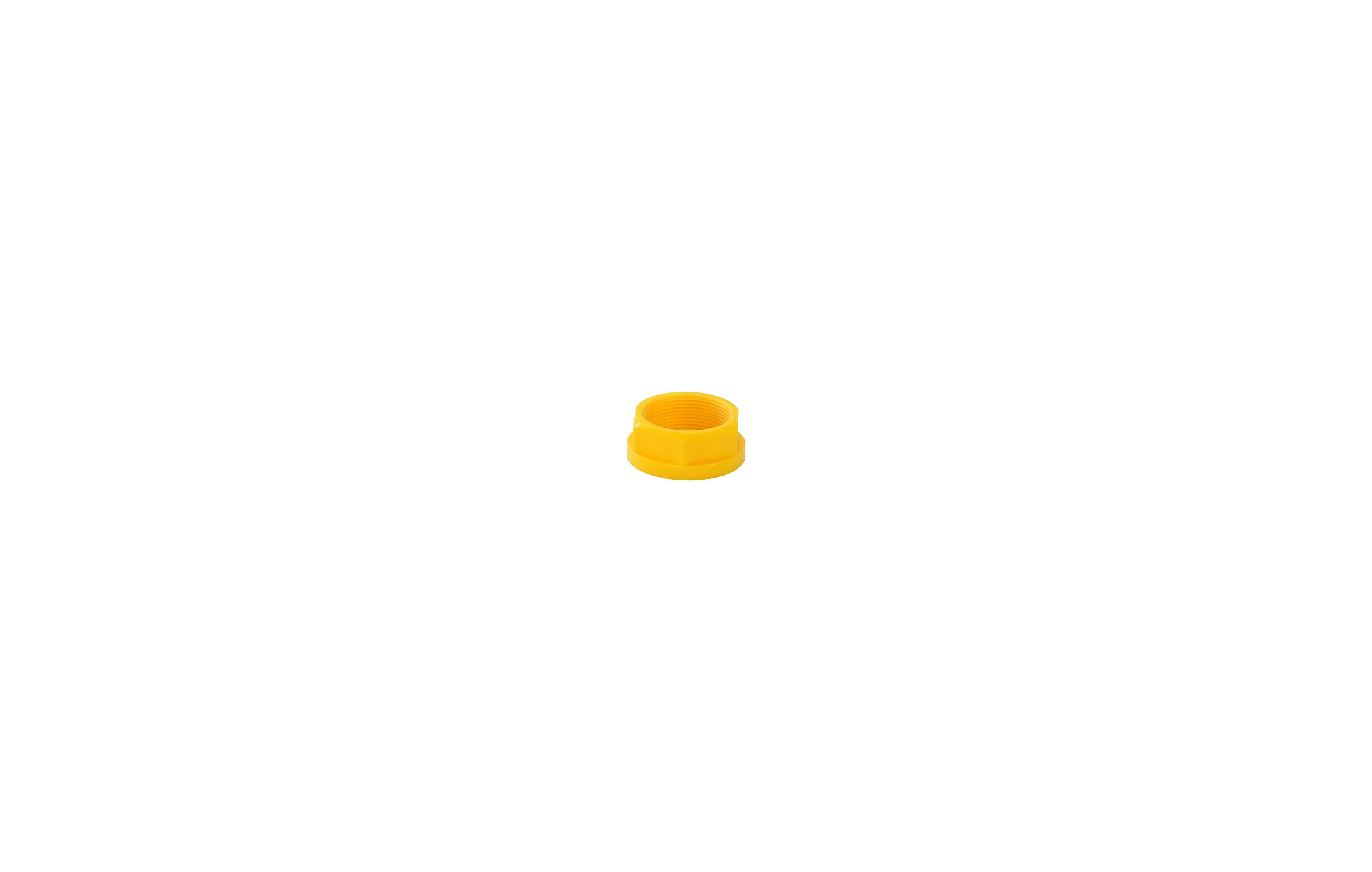

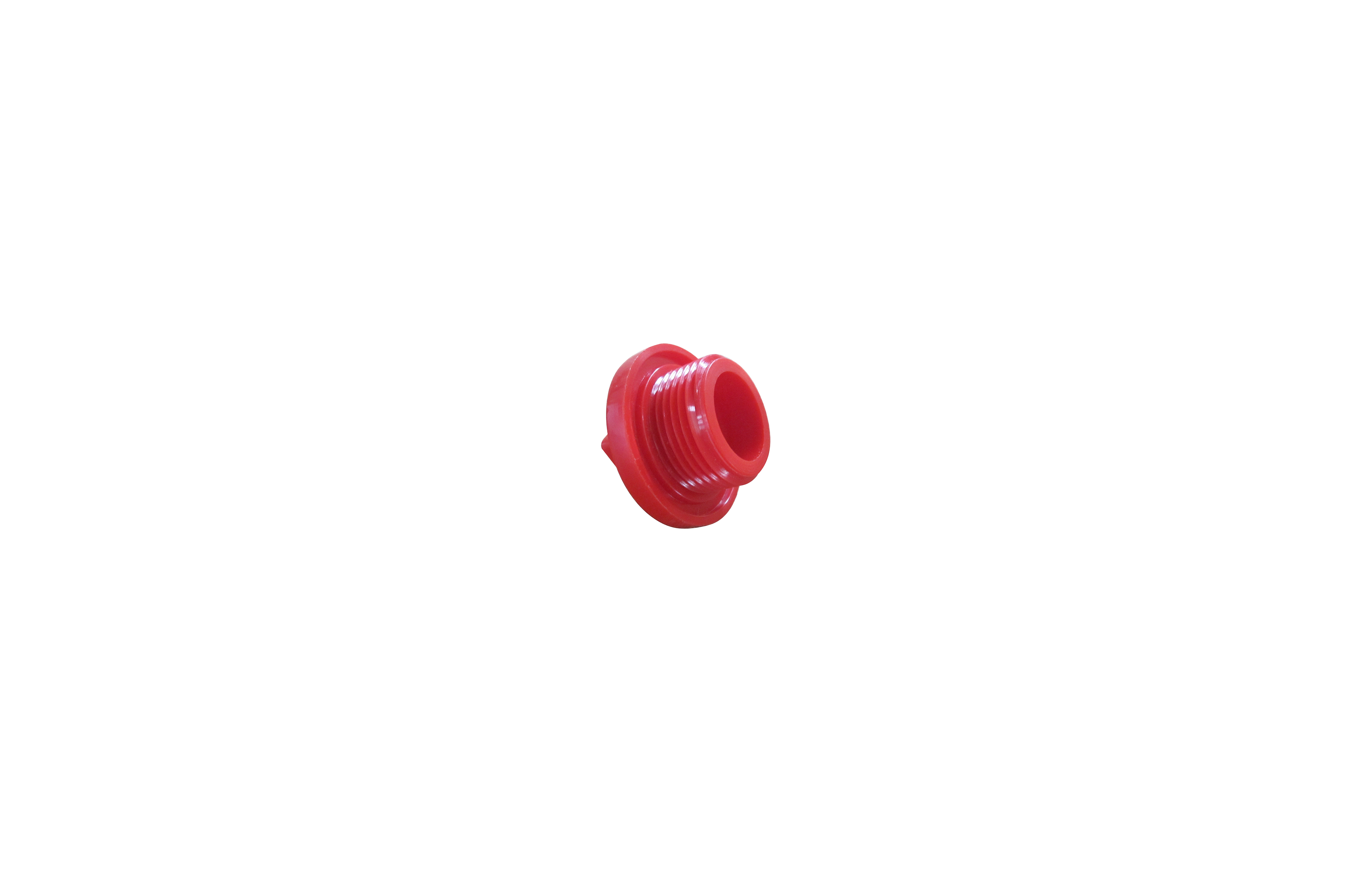

管堵 管堵

* Please click on the product component to view relevant information
