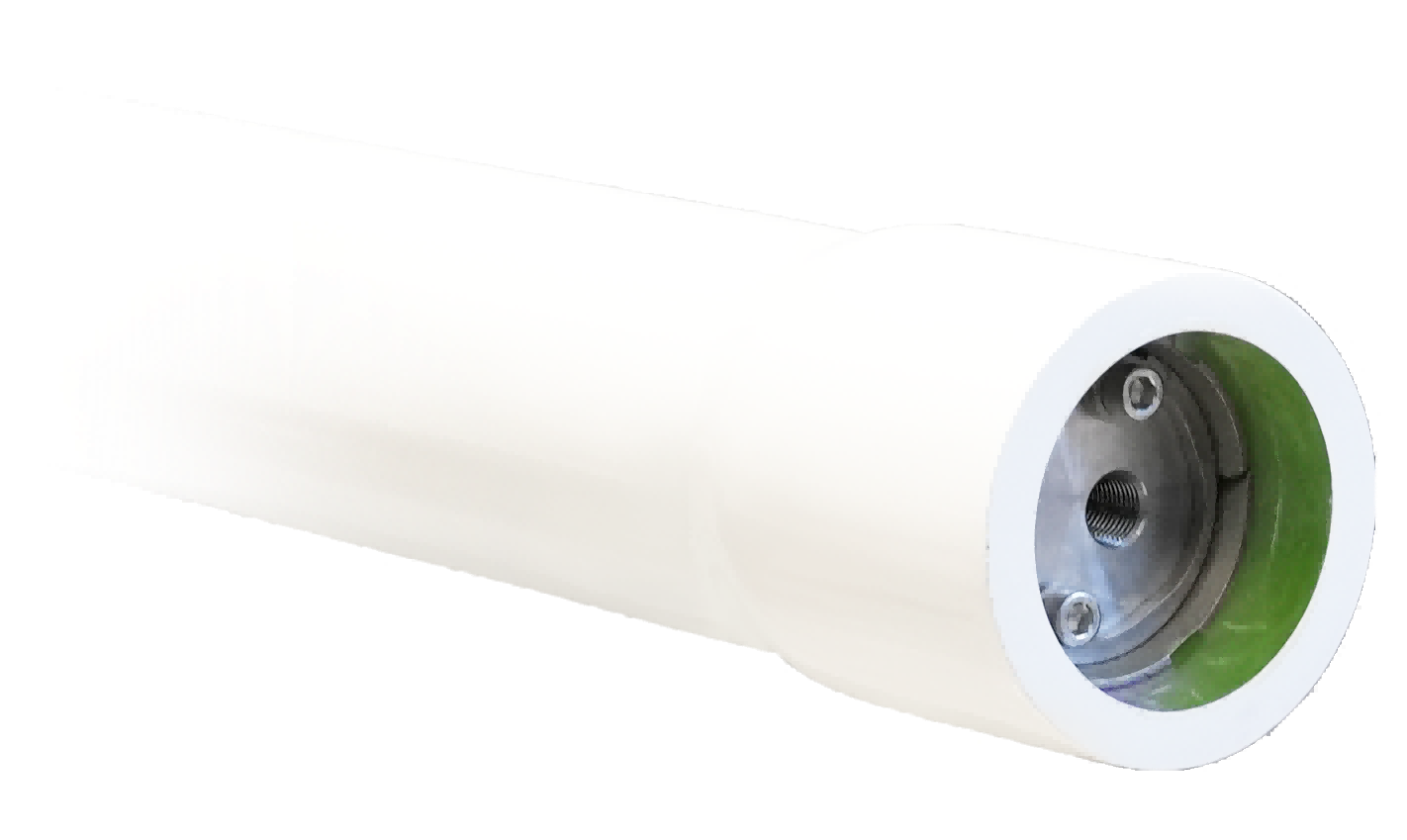

Models F25-1000E

Contact Us

End Entry Design
- Available in 1000 psi pressure rating
- Accommodates standard make 2.5" Membrane Element
Key Features
- Operating Temp Range: -10°C ---49°C
- Test pressure
  - Standard: 1.5x Design Pressure
  - ASME: 1.1x Design Pressure
- Internal permeate port not to exceed 125PSI(0.88MPa)
- Operating pH Range: 3 – 11
- Cleaning pH Range: 2 – 12 (less than 30 minutes)
- Please operate in accordance with User Guide

All information is subject to change without prior notice. Please contact us for the latest product information and specifications.

3D View of End Cap Assembly

整体端板

整体端板

密封圈

密封圈

中密封圈

中密封圈

密封板

密封板

保安环

保安环

* Please click on the product component to view relevant information

Part Name：End Cap

Part Number：F2540-1000E

Part Name：O-ring , PWT

Part Number：20002478

Part Name：O-ring , Head

Part Number：20002658

Part Name：End Plate

Part Number：20000042

Part Name：Locking Kit Segment

Part Number：20001061/62/63

Part Name：Securing Ring

Part Number：20001064

Part Name：Securing Screw

Part Number：20000205
