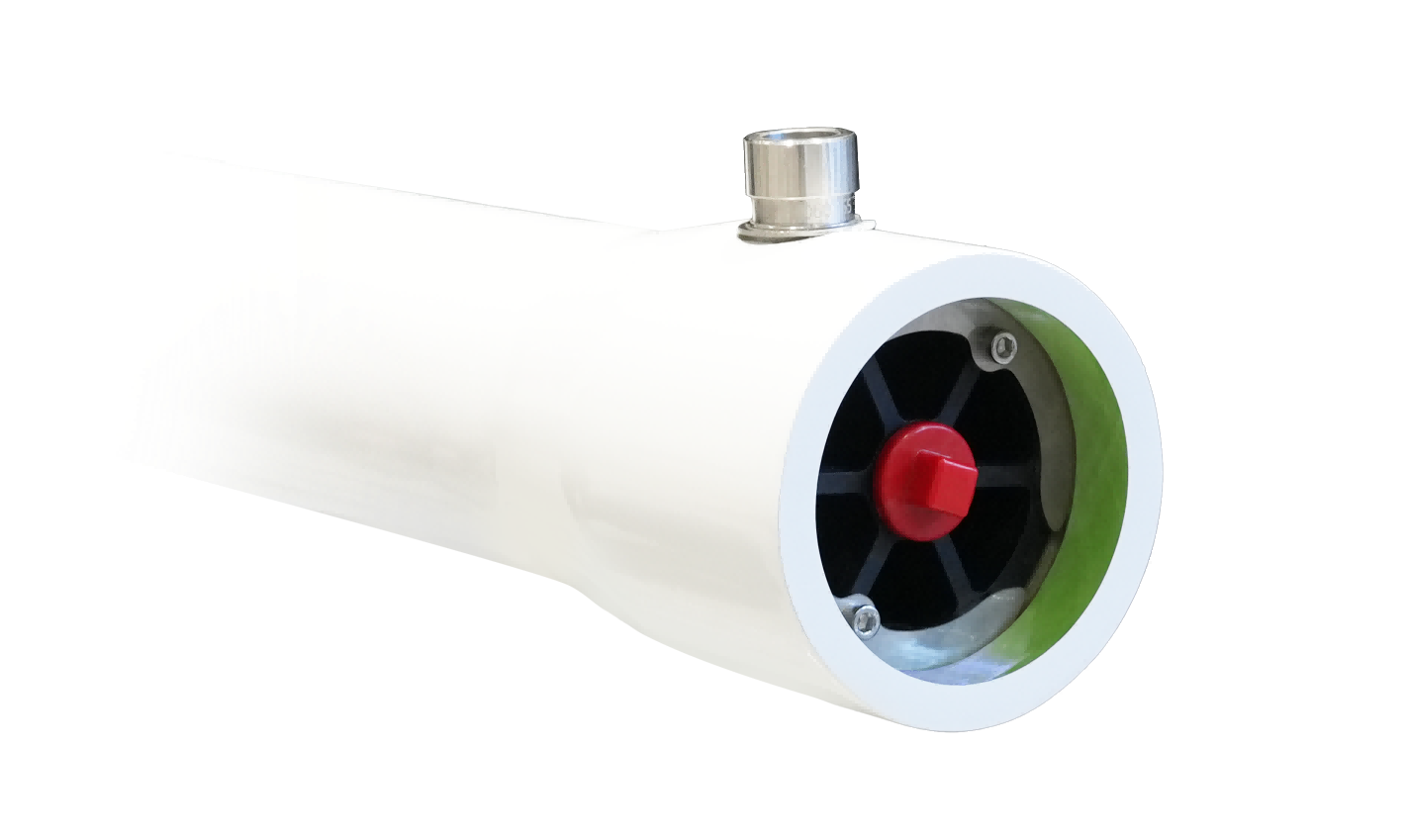

Models F40-300S

Contact Us

Side Entry Design
- Available in 300 psi pressure rating
- Accommodates standard make 4" Membrane Element
Key Features
- Operating Temp Range: -10°C ---49°C
- Test pressure
  - Standard: 1.5x Design Pressure
  - ASME: 1.1x Design Pressure
- Internal permeate port not to exceed 125PSI(0.88MPa)
- Operating pH Range: 3 – 11
- Cleaning pH Range: 2 – 12 (less than 30 minutes)
- Please operate in accordance with User Guide

3D View of End Cap Assembly

整体端板

整体端板

密封圈

密封圈

大密封圈

大密封圈

密封板

密封板

密封圈

密封圈

* Please click on the product component to view relevant information

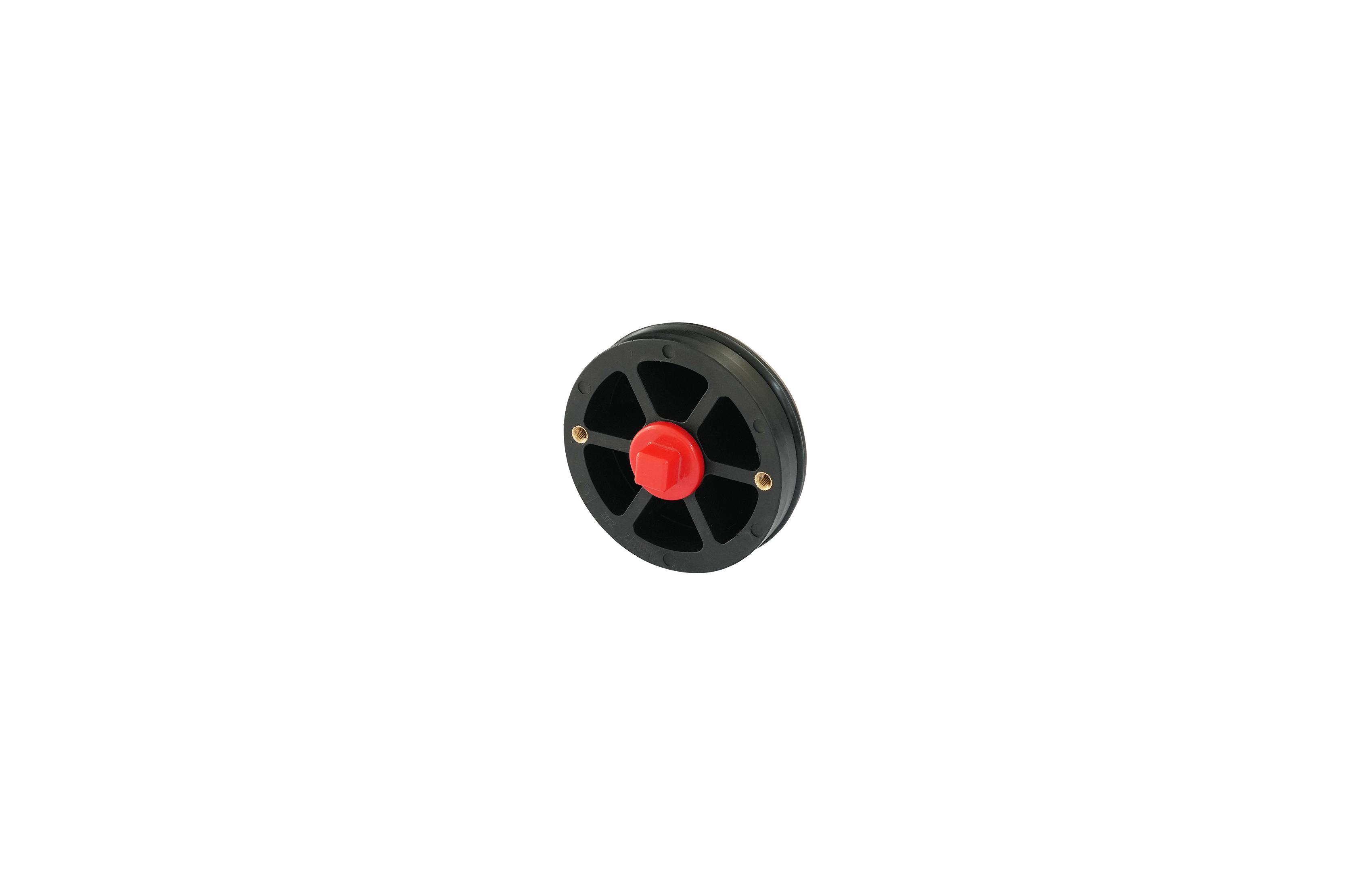

Part Name：End Cap

Part Number：F40-300S

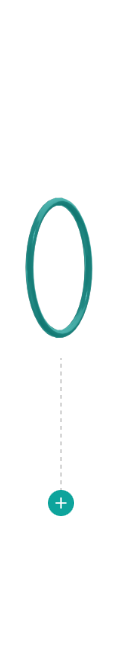

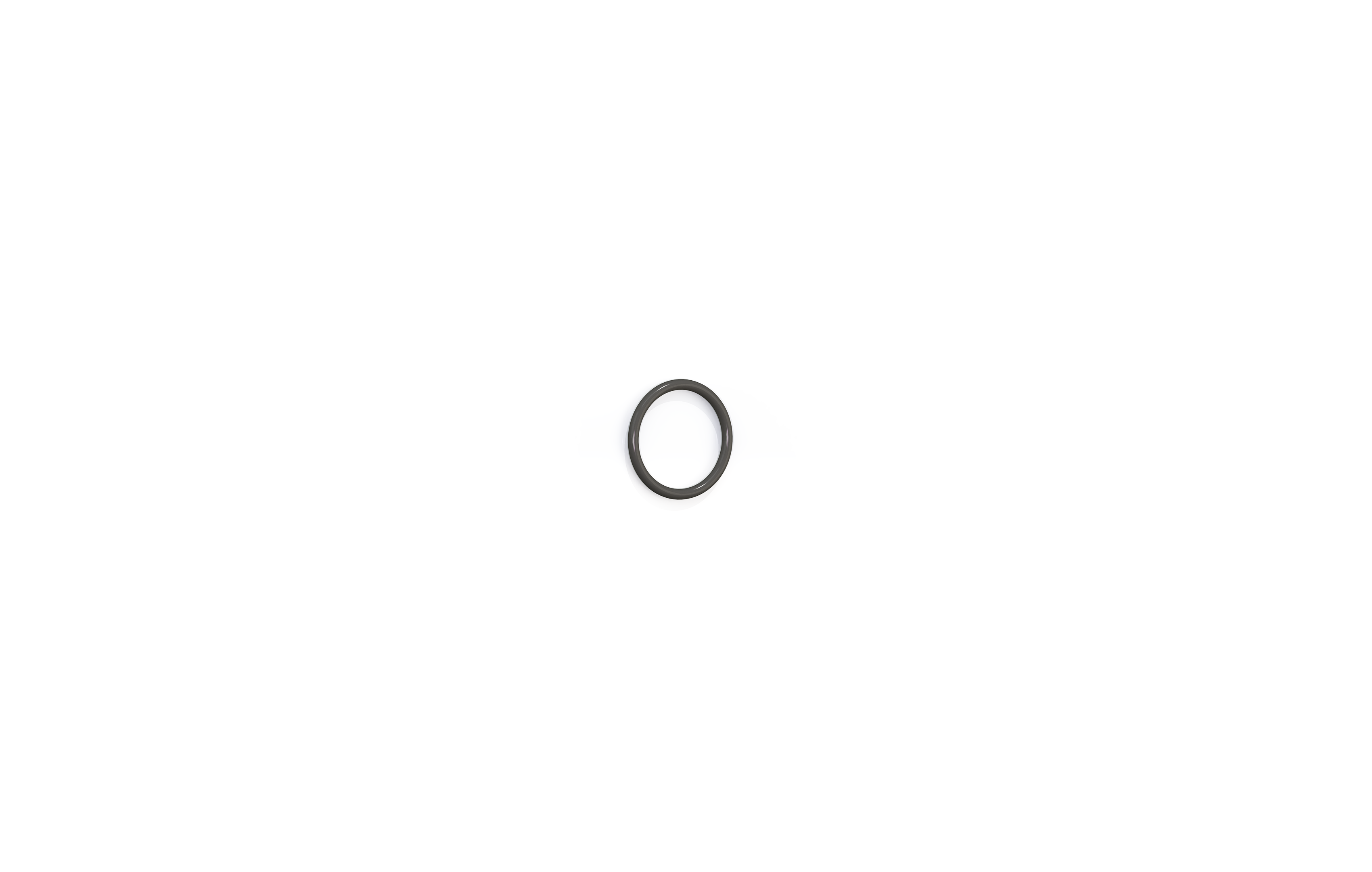

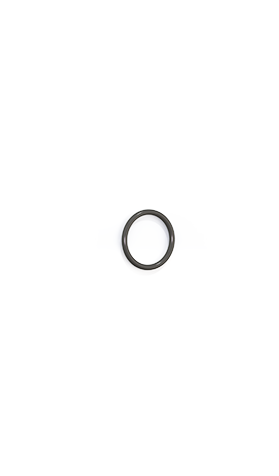

Part Name：O-ring , PWT

Part Number：20002478

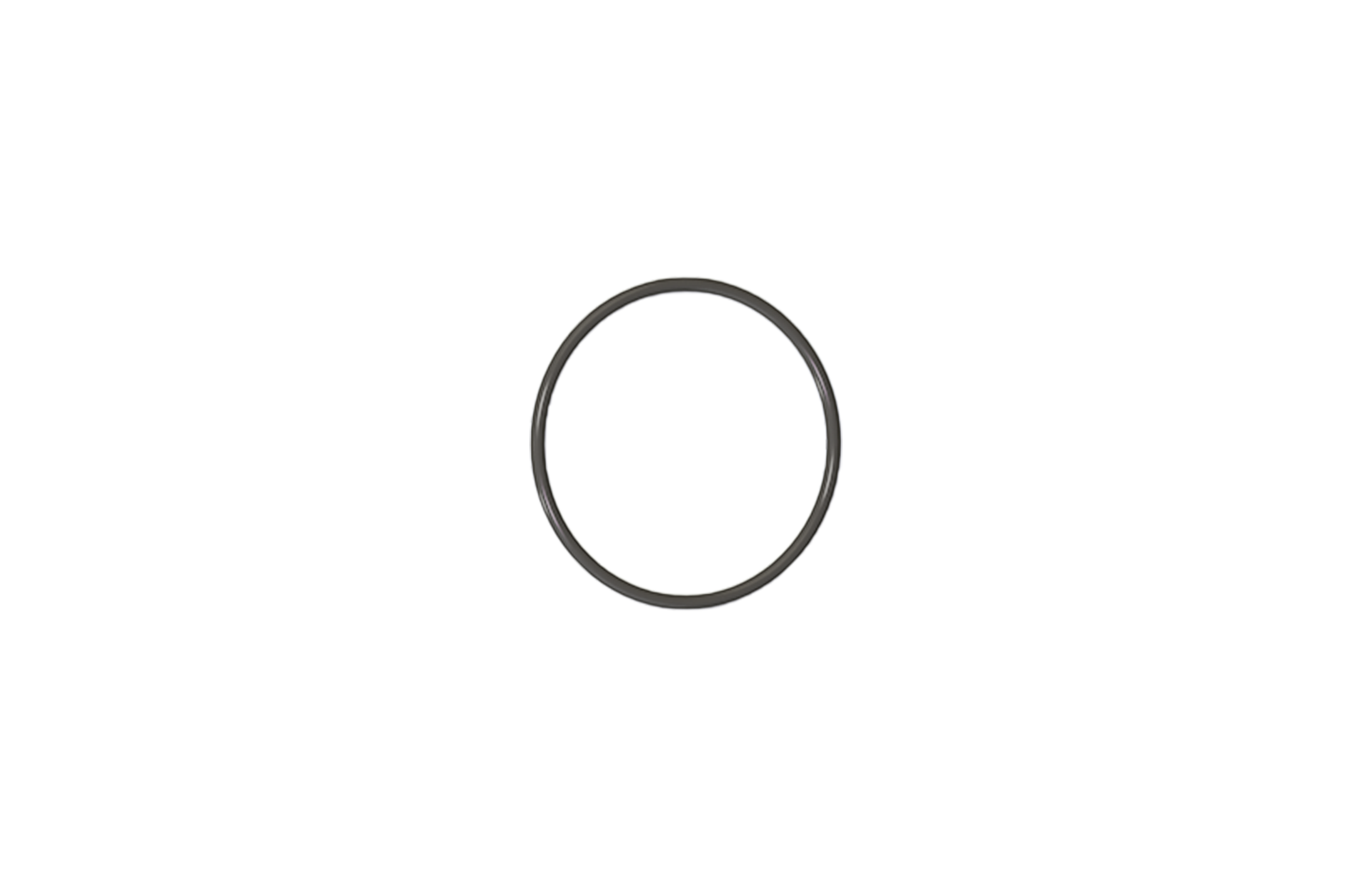

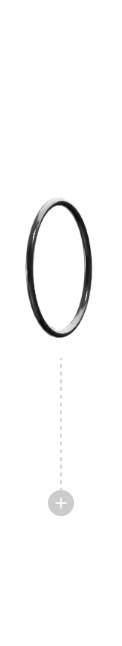

Part Name：O-ring , Head

Part Number：20000319

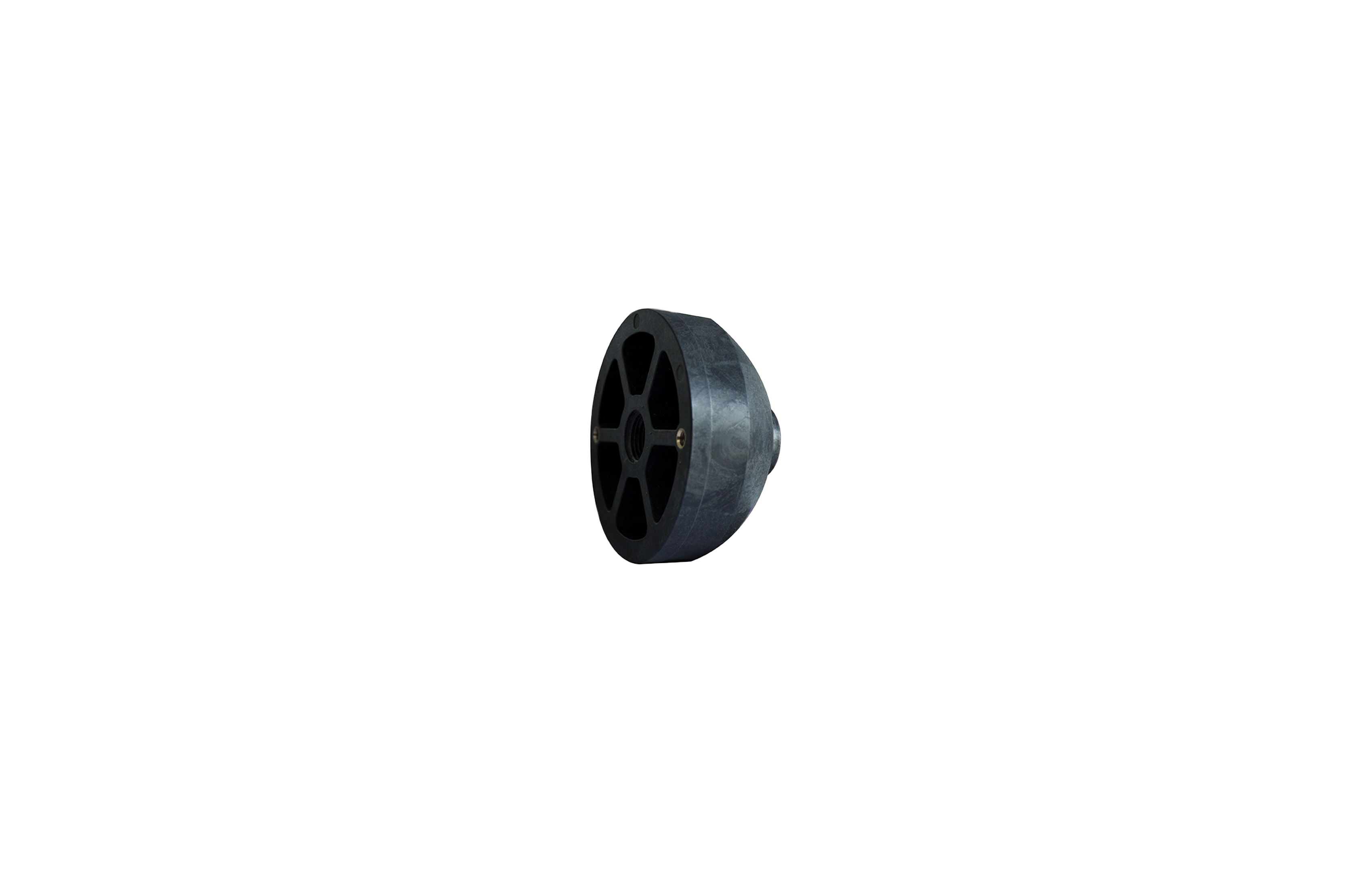

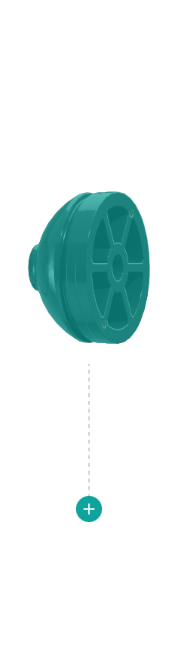

Part Name：End Plate

Part Number：20000032

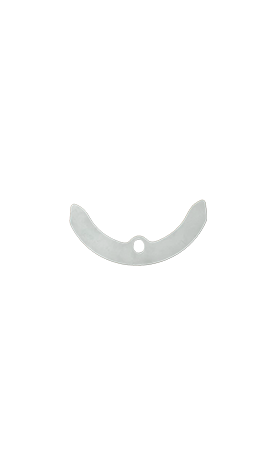

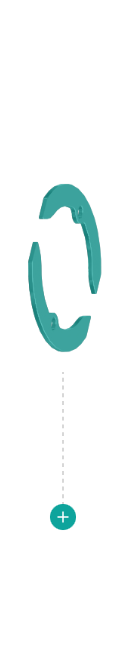

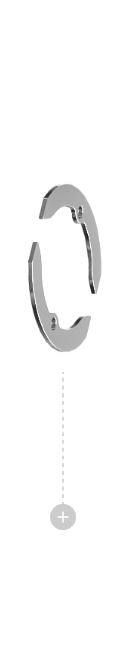

Part Name：Locking Crescent

Part Number：20001081

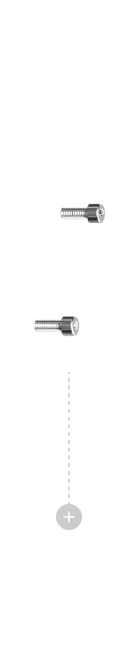

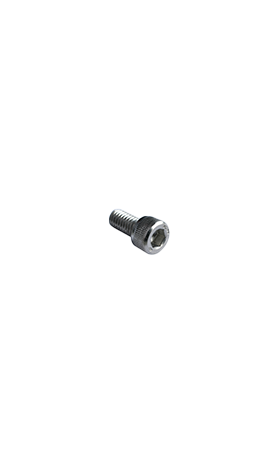

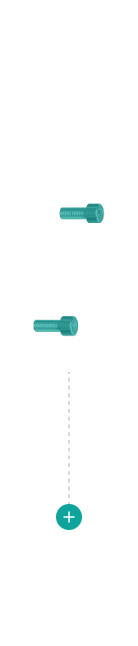

Part Name：Locking Crescent Screw

Part Number：20000205

Part Name：O-ring , Plug

Part Number：20002813

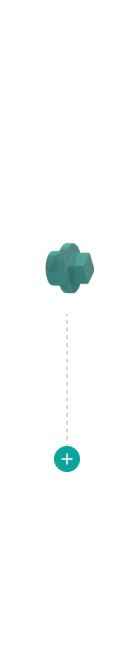

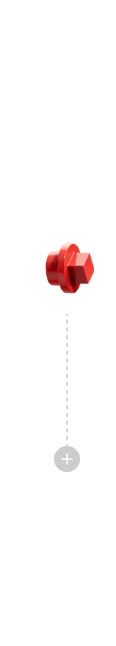

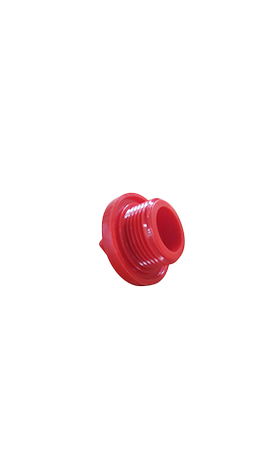

Part Name：Plug

Part Number：20000075

Download Products Information
